Step 1: Subfloor Preparation
Ensure the wooden or concrete substrate is level and clean. Unlike prefabricated shower pan kits from competitors, Mondeway's rigid board can bridge minor imperfections.
No classification
No classification
No classification
No classification
No classification
No classification
No classification
No classification
No classification
No classification
No classification
No classification
No classification
No classification
No classification
No classification
No classification
No classification
No classification
No classification
No classification
No classification
No classification
No classification
No classification
No classification
No classification
No classification
No classification
No classification
No classification
No classification
No classification
No classification
No classification
No classification
No classification
No classification
No classification
No classification
No classification
No classification
No classification
No classification
No classification
No classification
No classification
No classification
No classification
No classification
No classification
No classification
No classification
No classification
No classification
No classification
No classification
Please select superior classification
Please select superior classification
Please select superior classification
Please select superior classification

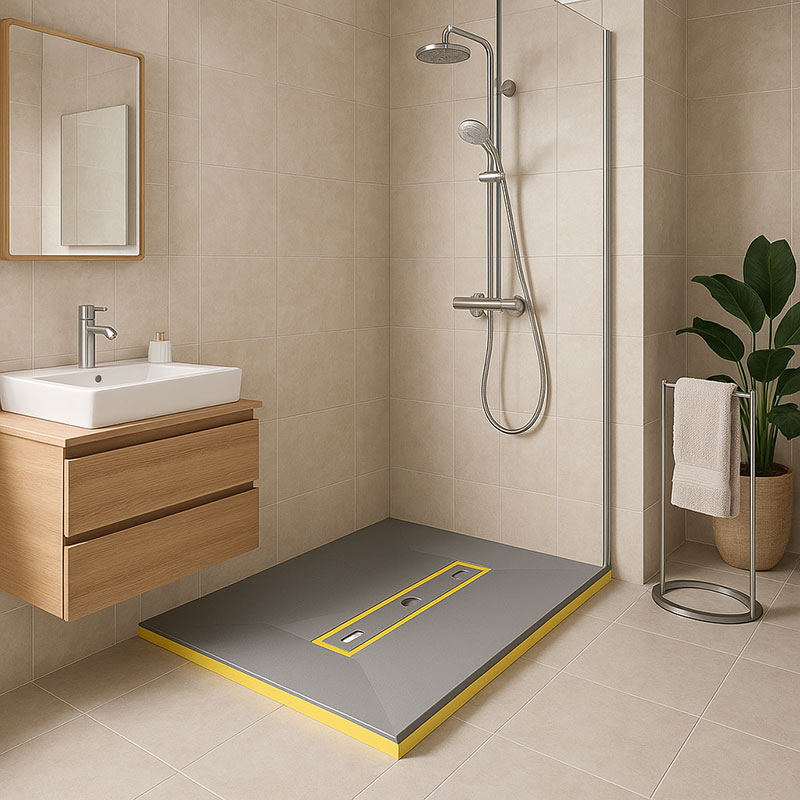

Engineered for professional installers. Mondeway's prefabricated shower tray system replaces heavy mortar beds with a 100% waterproof, high-density tile ready shower pan that cuts installation time by 80%.
Extruded Polystyrene (XPS) with 40kg/m³ density. Unlike foam substitutes, our xps shower base maintains structural integrity under heavy porcelain or natural stone loads, ensuring no "sponge" effect over time.
Perfect drainage is factory-guaranteed. No manual screeding required.
R-value insulation keeps the tileable shower tray surface warm to the touch.
Cementitious polymer coating on both sides provides an aggressive bond for all shower tray board tiling applications.
Our waterproof shower pan material ensures zero capillary action. Even if the tile grout fails, the xps shower trays core remains 100% impervious to moisture, preventing mold and subfloor rot.

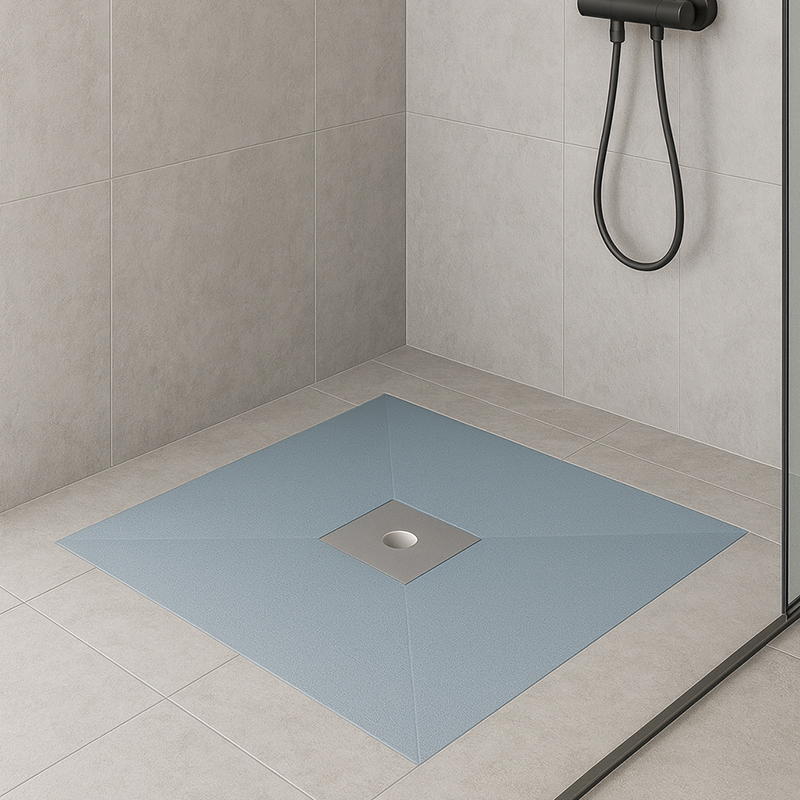

Traditional center-drain shower pan for tile. Optimized for 1000x1000mm and 1200x1200mm standard layouts.
✓ Tile-Ready Surface

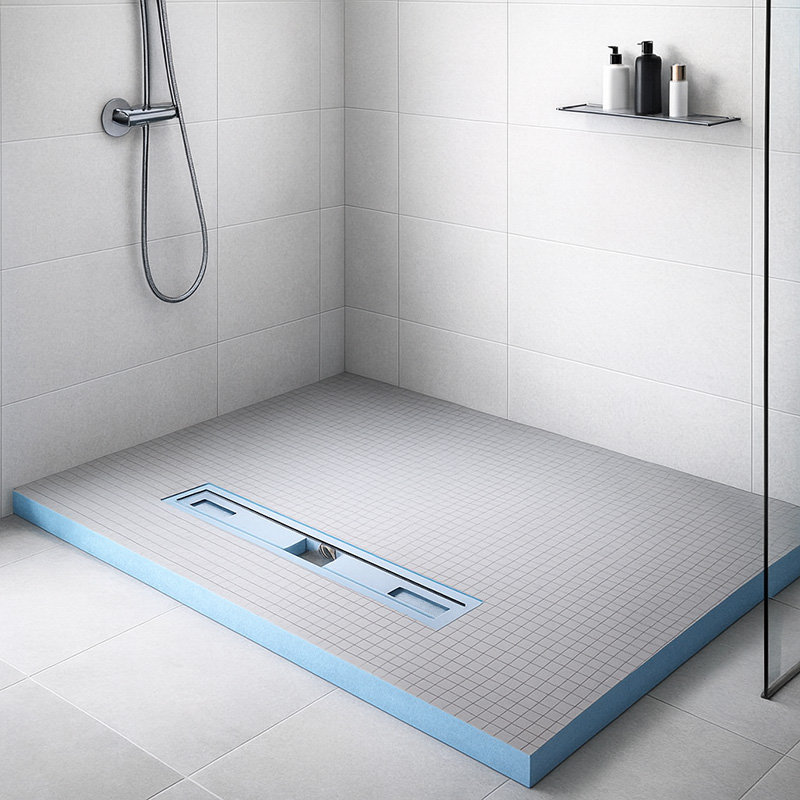

The premium choice for walk in shower floor pan designs. Single-slope gradient allows for large-format tile installation.
✓ ADA Compliant EntryEnsure the wooden or concrete substrate is level and clean. Unlike prefabricated shower pan kits from competitors, Mondeway's rigid board can bridge minor imperfections.
| Model | Standard Size (mm) | Thickness (mm) | Drain Type |
|---|---|---|---|
| SF-9090 | 900 x 900 | 20 / 30 / 40 | Center Point |
| SF-1290-L | 1200 x 900 | 30 (Fixed Slope) | Linear End |
Yes. The shower tray board can be easily trimmed with a circular saw or utility knife to fit non-standard alcoves. We recommend re-sealing any cut edges with waterproof tape.
Absolutely. The tile shower base acts as an excellent thermal break. Heating cables can be laid directly on top of the tray using a self-leveling compound or thin-set.
For point-drain shower base pans, we recommend tiles larger than 50x50mm to ensure they can follow the 4-way slope without cracking. For linear drains, any tile size is applicable.
Our high-density xps shower trays are engineered for commercial use. When tiled with 10mm porcelain, they can support heavy shower benches or glass partitions without deflection.
Yes. As a manufacturer, we offer bespoke shower trays for orders exceeding 50 units. We can customize the drain location and tray dimensions to match your floor plan.
No. Our proprietary polymer-modified coating is chemically fused to the XPS core, ensuring the tileable shower tray remains bond-ready for years when stored correctly.
We recommend a C2-S1 grade highly flexible tile adhesive. This ensures the shower base pan remains anchored even during building settlement or temperature fluctuations.
The prefab shower pan eliminates the toxic fumes and fire risks associated with hot mopping. It provides a consistent slope that manual mopping simply cannot replicate.
