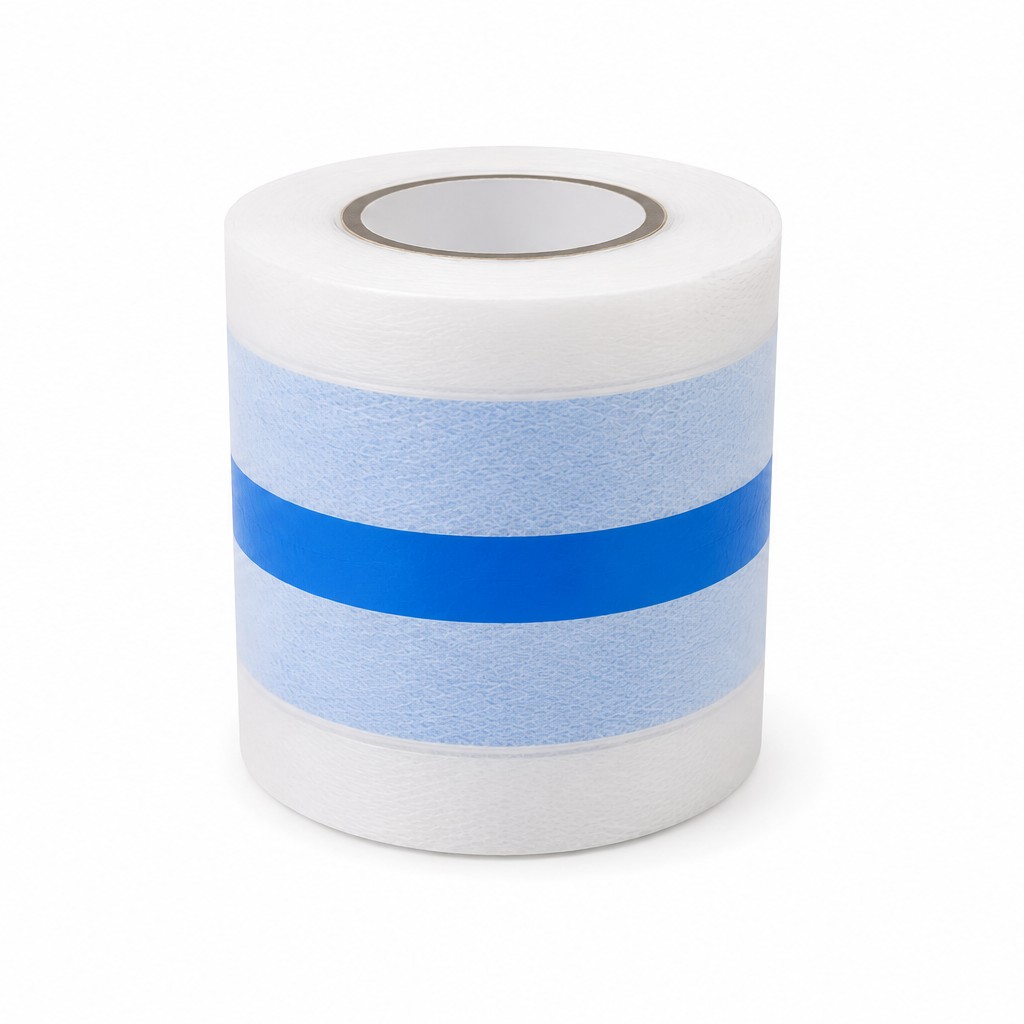

Traditional building joints succumb to concrete settlement stresses. The Mondeway high-density TPE waterproofing tape establishes a permanently elastic, structural-grade sub-floor hydraulic shield.

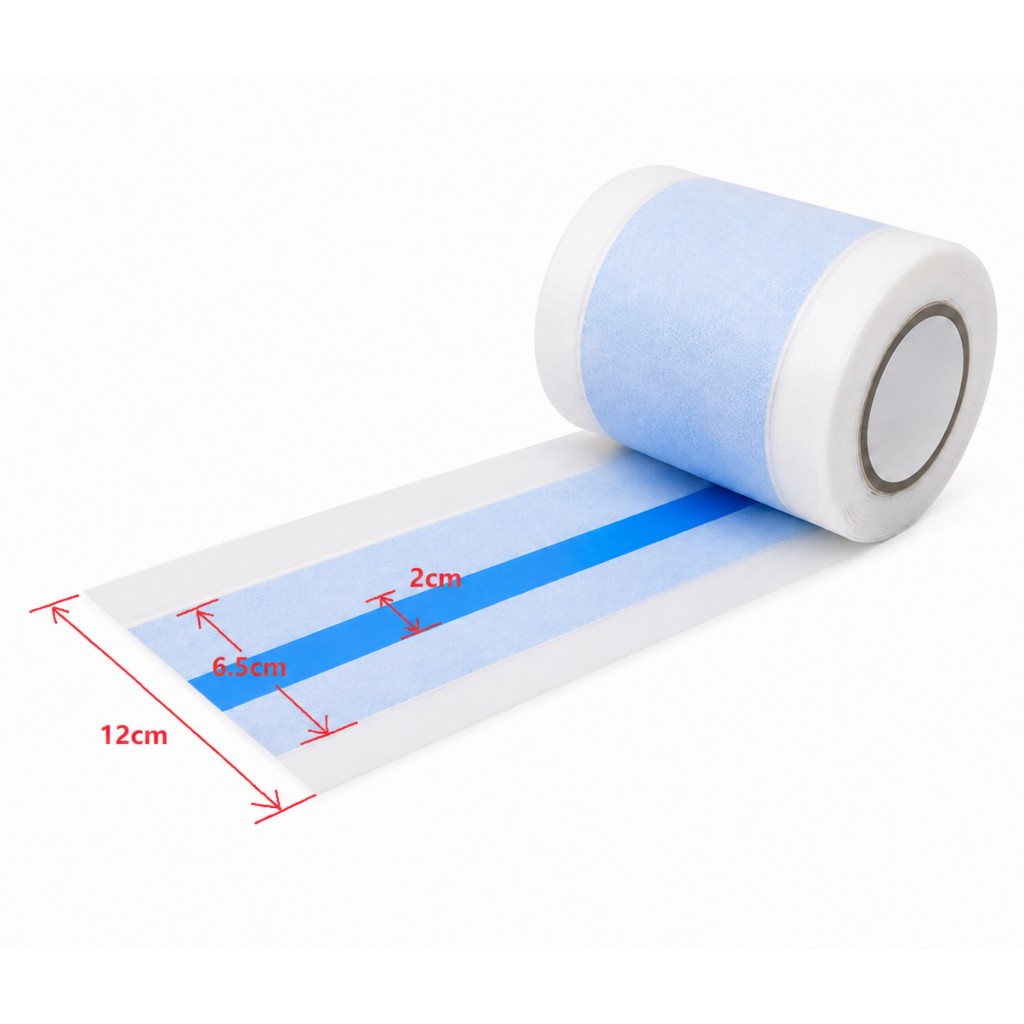

Precision engineered profile cross-section for maximum thinset saturation and zero transition height.
| Total Span Width: | 120 mm (12 cm) Symmetrical Distribution |
| Core Membrane Thickness: | 0.5mm ± 0.05mm Constant Caliper |
| Elastomer Expansion Strip: | 20 mm Heavy-Duty Center Zone |
| Lateral Fleece Wings: | 50 mm + 50 mm High Absorption Borders |
Continuous hydraulic resistance testing under structural expansion load conditions.
*The non-fading structural elastomeric matrix remains non-reactive when encapsulated completely inside Portland alkaline concrete matrices.

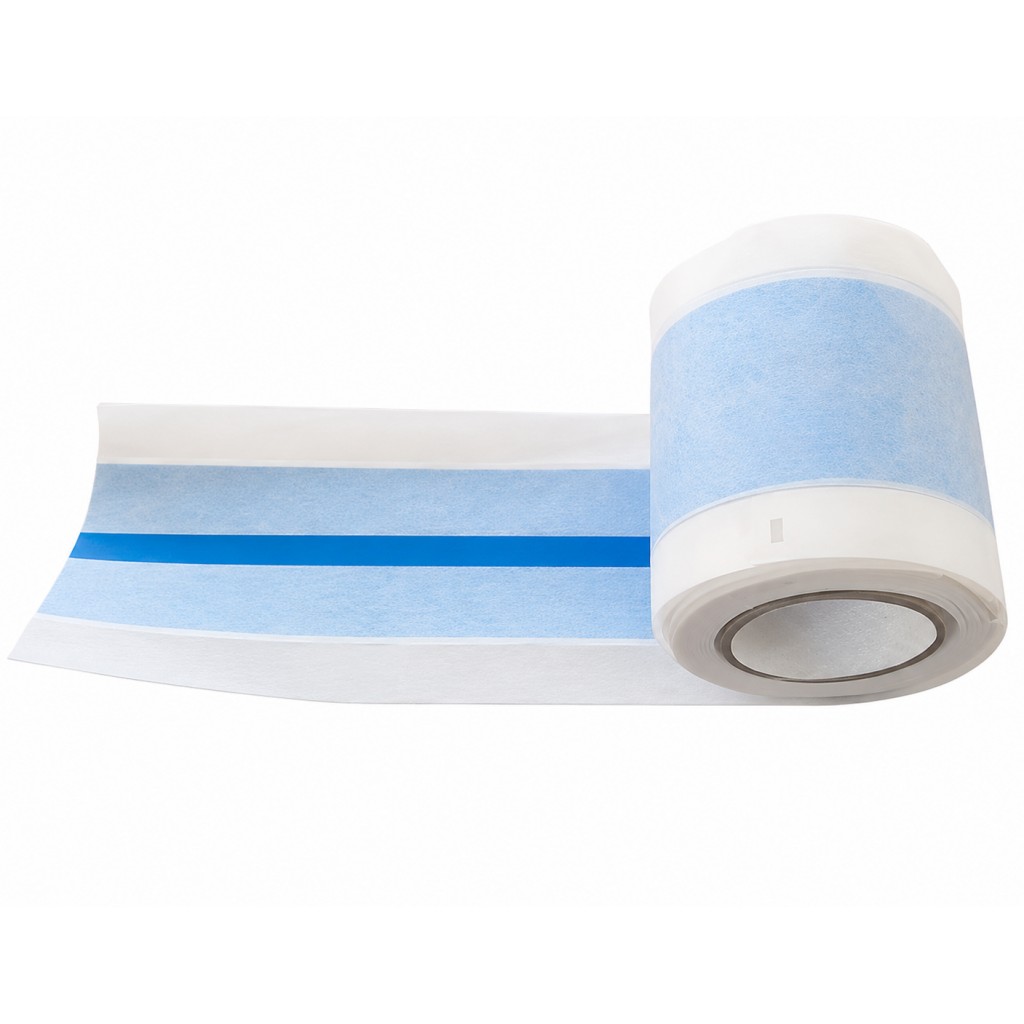

Exhibits strong toughness across multi-axial stress fields, accommodating shifting pipe-floor gaps without delamination.

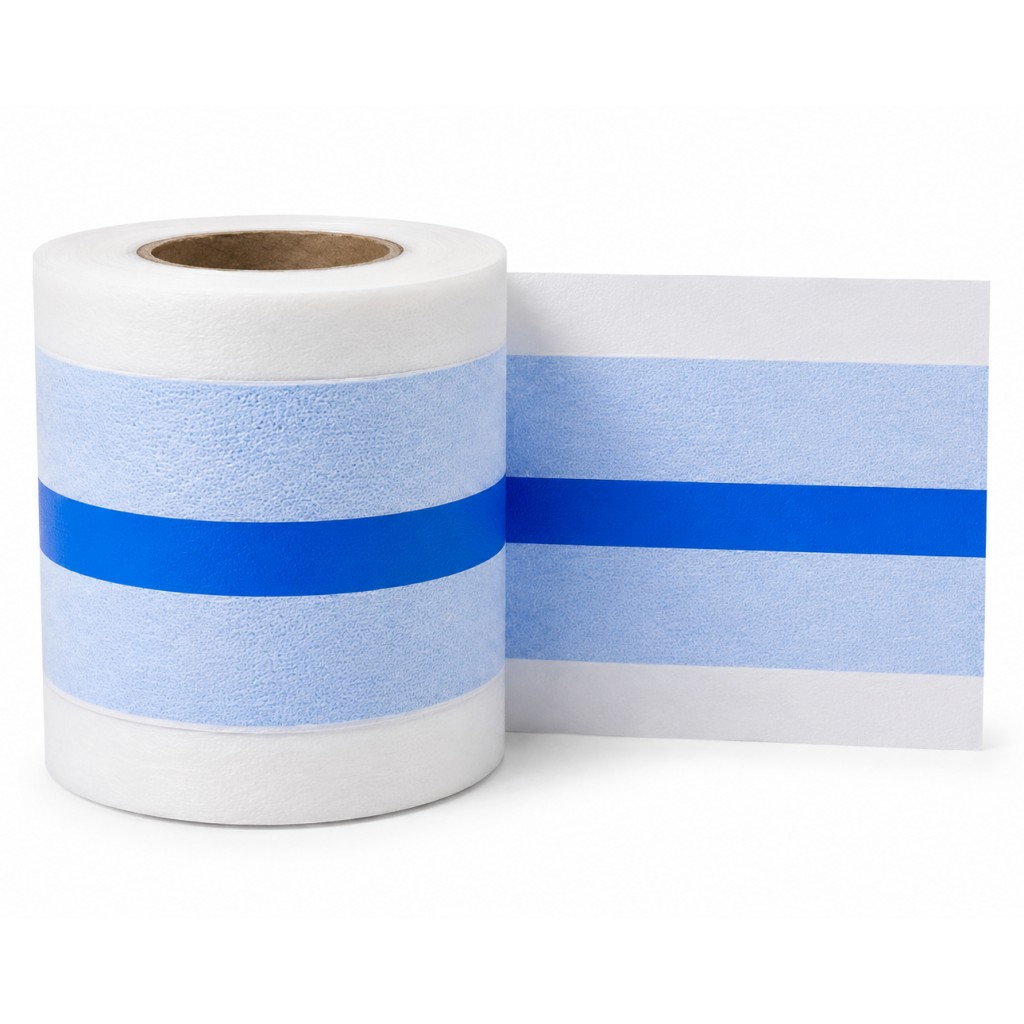

Both lateral margins are laminated with engineered non-woven mesh fabric. This dual-sided fibrous matrix guarantees immediate capillary suction when thin mortar or liquid waterproofing slurries are applied, preventing joint exterior moisture bypass paths.
Review detailed material characterization data revealing how different compounding substrates withstand continuous subfloor moisture loads.
Synthesized with zero plasticizers to eliminate chemical leaching and shrinkage over time. Provides lifelong flexibility under structural concrete layer environments.
Alkali Resistance Testing: Retains 98.4% tensile recovery after 500 hours submersion in calcium hydroxide saturated solution.
Bond Mechanical Integrity: Total unified monolithic fusion to tile mortars through non-woven fleece anchors.
Prone to severe plasticizer migration when exposed directly to highly alkaline cement environments, leading to embrittlement.
Alkali Longevity Risk: Tensile retention drops below 40% within 36 months, generating subsurface joint splits.
Thermal Instability: Hardens rapidly below 0°C, risking shear breakdown during standard winter cycles.
Relies exclusively on pressure-sensitive adhesive bonds that naturally hydrolyze when subjected to continuous subfloor water collection.
Adhesive Hydrolysis Profile: Complete delamination occurs when substrate water pressure bypasses surface tiled mortars.
Stress Creep Flaws: Incapable of managing continuous building dynamic shearing expansion adjustments.
Drag the interactive central divider to evaluate the protective membrane roll profiles across multi-tier material alignments.
Click on each operational stage node below to view the structural steps required to lock the waterproofing joint tape into the base mortar layer.

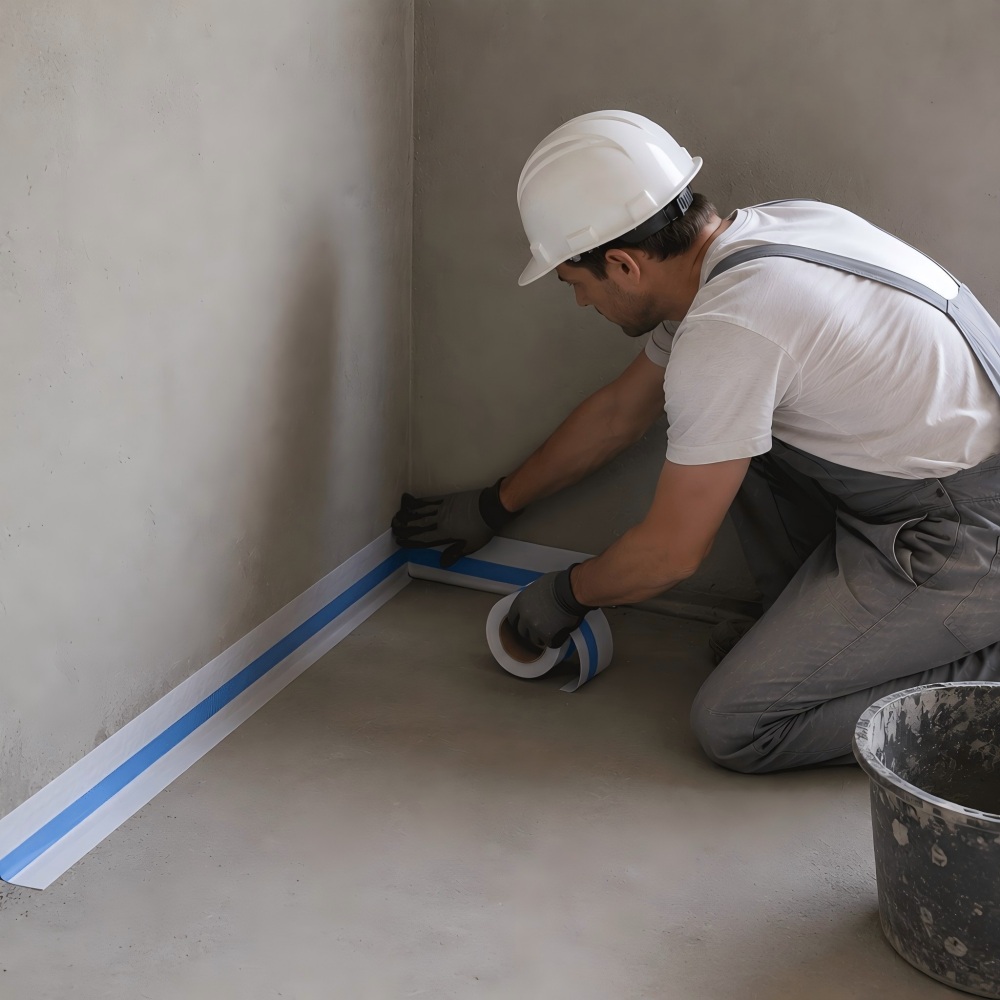

Ensure the raw bathroom basin floor joints, shower niches, or wall-floor junctions are completely clean of chemical release residues and dust particles. Spread polymer-modified thinset adhesive along both intersecting planes using a 4x4mm notched trowel, maintaining a uniform bed thickness across the joint zone.
Click on any compliance asset parameter node below to view detailed technical explanations of our custom production capabilities.
Direct technical clarifications from Mondeway's research lab team to address challenges with wet room layout integrations.
Standard PVC membranes achieve flexibility by compounding raw resins with volatile liquid plasticizers. When buried under highly alkaline cement environments, these plasticizer compounds quickly migrate out of the sheet, causing the material to harden, shrink, and crack over time. Our premium TPE waterproofing joint tape utilizes an inherently stable molecular structure with internal cross-linking that requires no chemical liquid plasticizers. This guarantees it maintains its elastic recovery performance for over 50 years under subfloor moisture loads.
Rather than relying purely on a superficial chemical bond, the non-woven fleece layers on both margins feature an open fiber matrix. When applied onto wet polymer-modified tile mortars, the liquid cement slurry infuses into these micro-fleece pathways. Once cured, this forms a high-strength physical anchor that prevents delamination under subfloor moisture loads, redistributing substrate stresses safely away from the corner joint.
Yes. Linear shower drains are highly prone to structural shear failures at the junction where metal drain flanges interface with concrete floor overlays. The 20mm unlaminated center zone of our TPE waterproofing tape allows the elastomer core to isolate independent movement. This safely absorbs multidirectional thermal expansions without tearing the liquid waterproofing topcoat layer away from the metal drain housing.
During shower niche fold management, installers cut the strip sections to span the inside corner intersections with a minimum 50mm overlapping margin. Pre-fold the TPE waterproofing tape along its central axis to form a crisp 90-degree angle profile. Embed the lower fleece layer securely into the base liquid coating or thinset bedding mortar, then use a plastic smoothing spatula to tool out any remaining air pockets before applying the subsequent topcoat sealing layer.
No. The ultra-low 0.5mm structural thickness profile is chosen to minimize height transitions along wall surfaces. When pressed firmly into a raked thinset layer, the tape embeds deeply into the mortar bed to create a flat substrate finish. This ensures thin wall mosaics or large-format tiles can be installed cleanly over the seam without requiring corrective thick-bed feathering prep steps.
Our advanced non-woven composite textile allows trapped concrete curing vapors to vent evenly through the outer fleece layer during initial installation. Simultaneously, the solid, non-porous core TPE central band provides a resilient barrier that blocks liquid water tracking under continuous high-pressure conditions.
