Mondeway's 4-1/2 inch mixing valve seals provide a critical barrier between your shower hardware and the structural wall, ensuring 100% watertight integrity in wet environments.
Water Ingress Risk

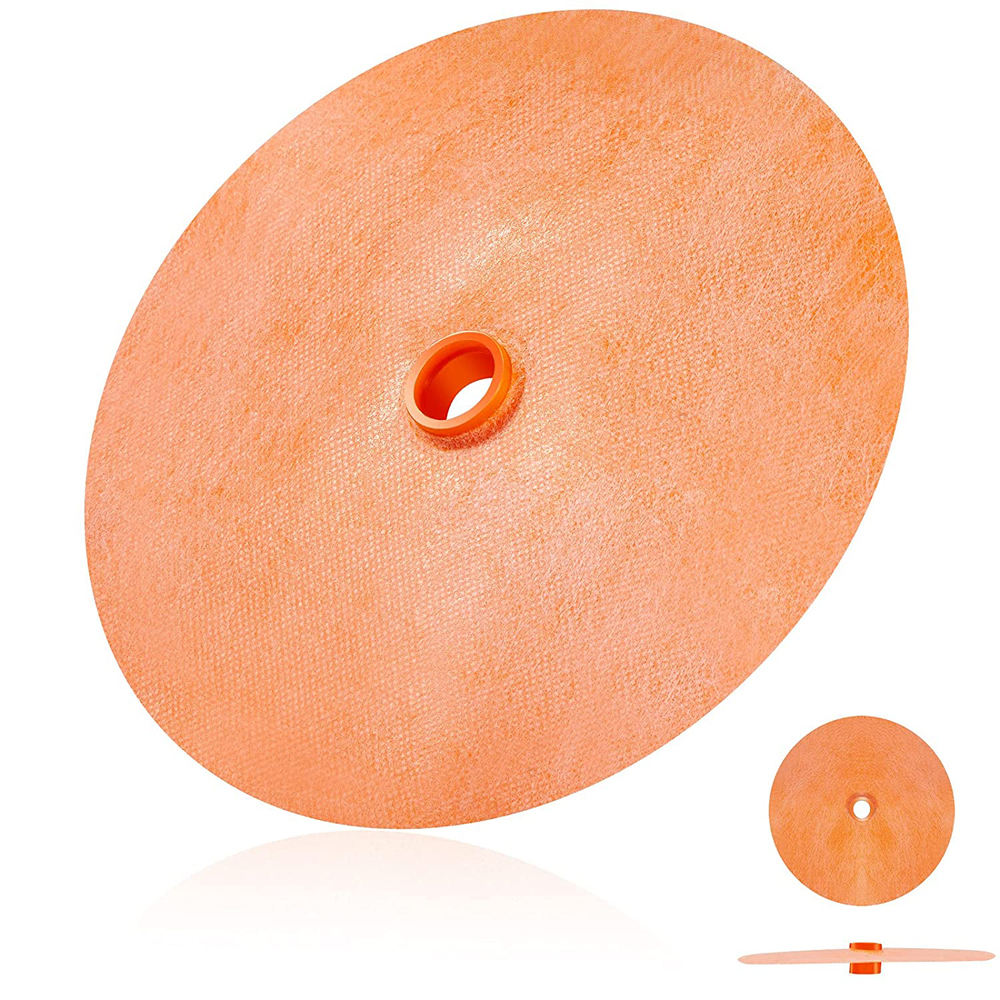

Engineered with non-woven fabric and polyethylene for superior adhesion to thin-set mortar and waterproofing membranes.
Preventing water damage requires more than just a cover plate. Our valve seals integrate directly into the wall's waterproofing layer.
Why professional contractors trust Mondeway for shower mixing valve seals.

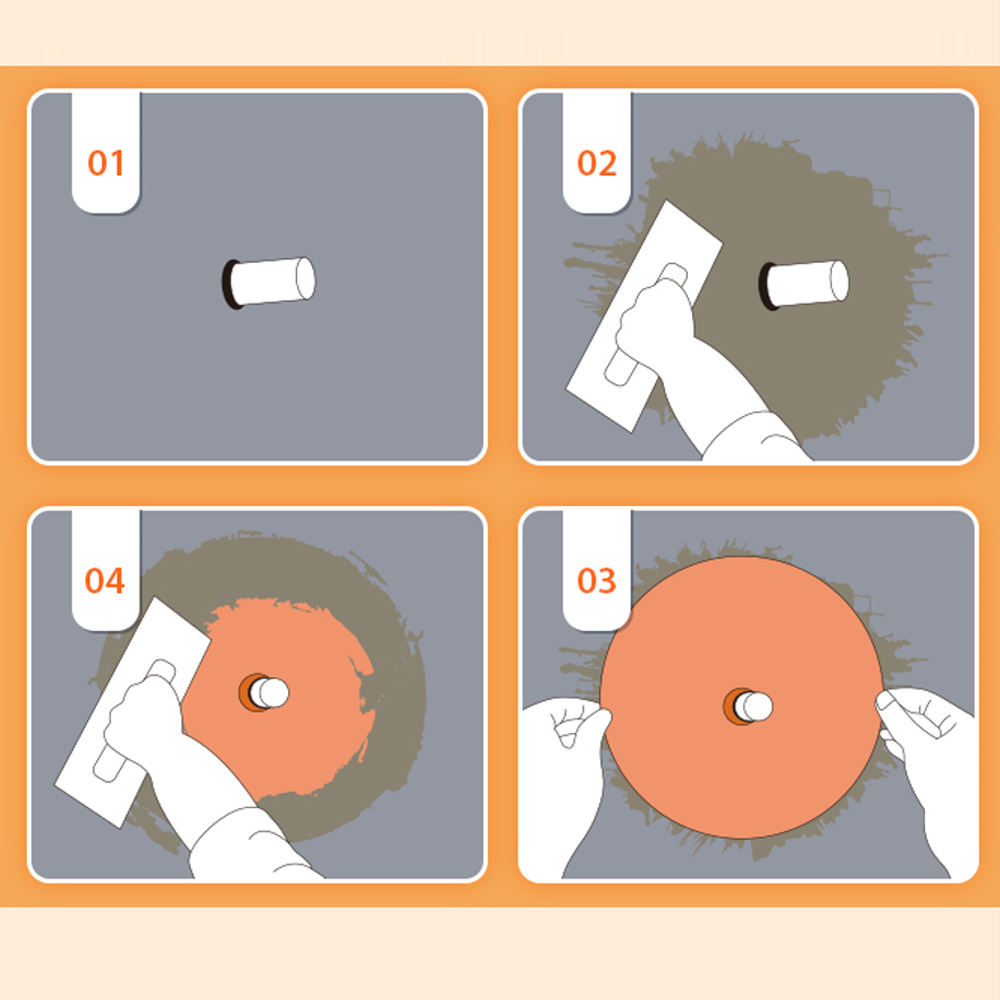

Clean the area around the valve opening. Ensure the cement board or waterproof membrane is securely fastened.

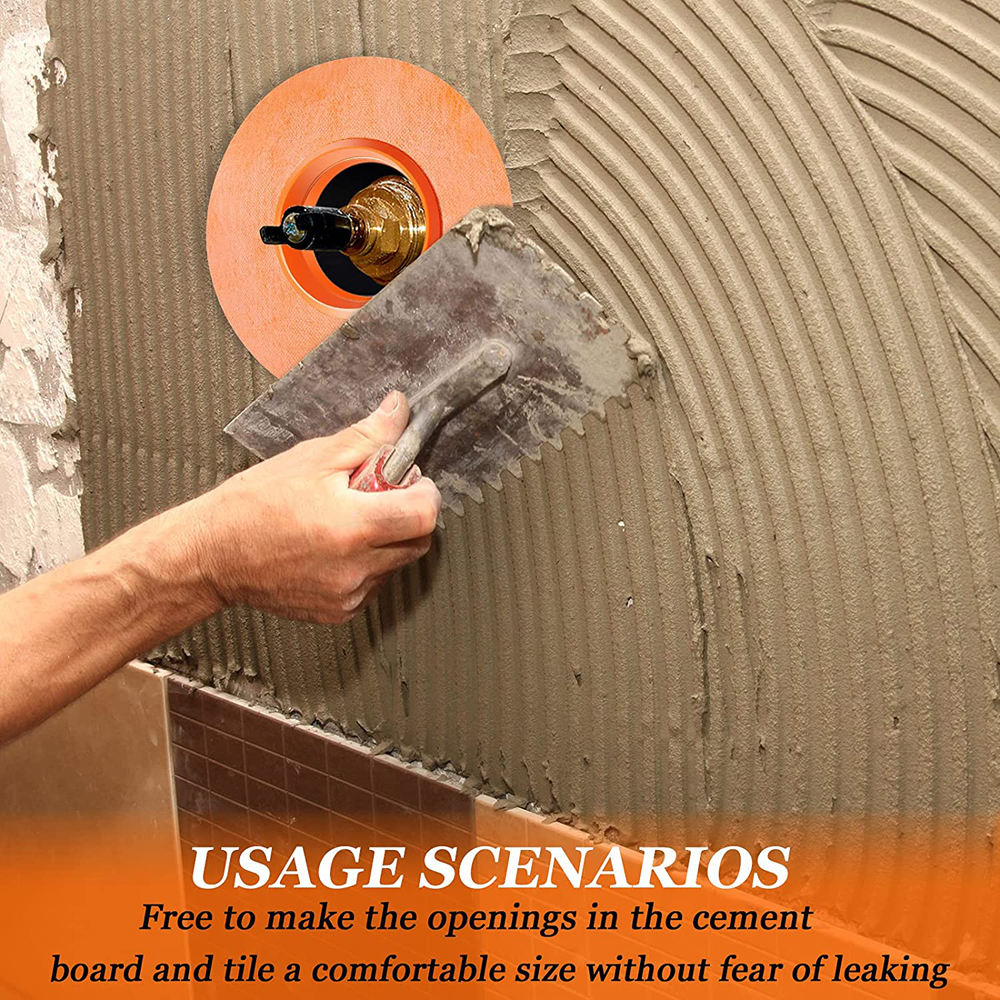

Apply unmodified thin-set mortar using a 1/4" x 3/16" V-notched trowel around the valve penetration.
Press the waterproofing mixing valve seal into the mortar, ensuring the rubber gasket creates a tight fit around the valve neck.
| Feature Comparison | Standard Caulking | Generic Rubber Seals | Mondeway PE Gasket Seal |
|---|---|---|---|
| Long-term Flexibility | Low (Cracks over time) | Medium | ✔ High |
| Chemical Resistance | Poor | Average | ✔ Excellent |
| Installation Speed | Slow (Drying time) | Fast | ✔ Instant |
| Vapor Permeability | Variable | High | ✔ 0.09 perms |
Yes. While specifically designed for larger mixing valves (4-1/2 inch), the flexible rubber center adapts to various pipe diameters, making it an ideal waterproof pipe seal for both supply lines and valve bodies.
It is designed to be embedded in standard unmodified thin-set mortar. The non-woven fabric surface ensures a mechanical bond with the mortar, identical to how you would install a waterproofing membrane.
Silicone caulk is a surface sealant that eventually fails due to expansion and contraction. A valve seal shower waterproof gasket provides a subsurface permanent barrier that moves with the structure, preventing leaks even if the external caulk fails.
Absolutely. Our polyethylene gaskets are 100% compatible with both sheet membranes and liquid-applied waterproofing systems common in modern shower construction.
The bright orange color ensures high visibility during inspection, while the high-density polyethylene provides an industry-leading vapor perm rating, keeping moisture out of the wall cavity.
Yes, the temperature resistance and vapor-tight seal make them suitable for high-moisture and high-temperature environments like steam rooms.
