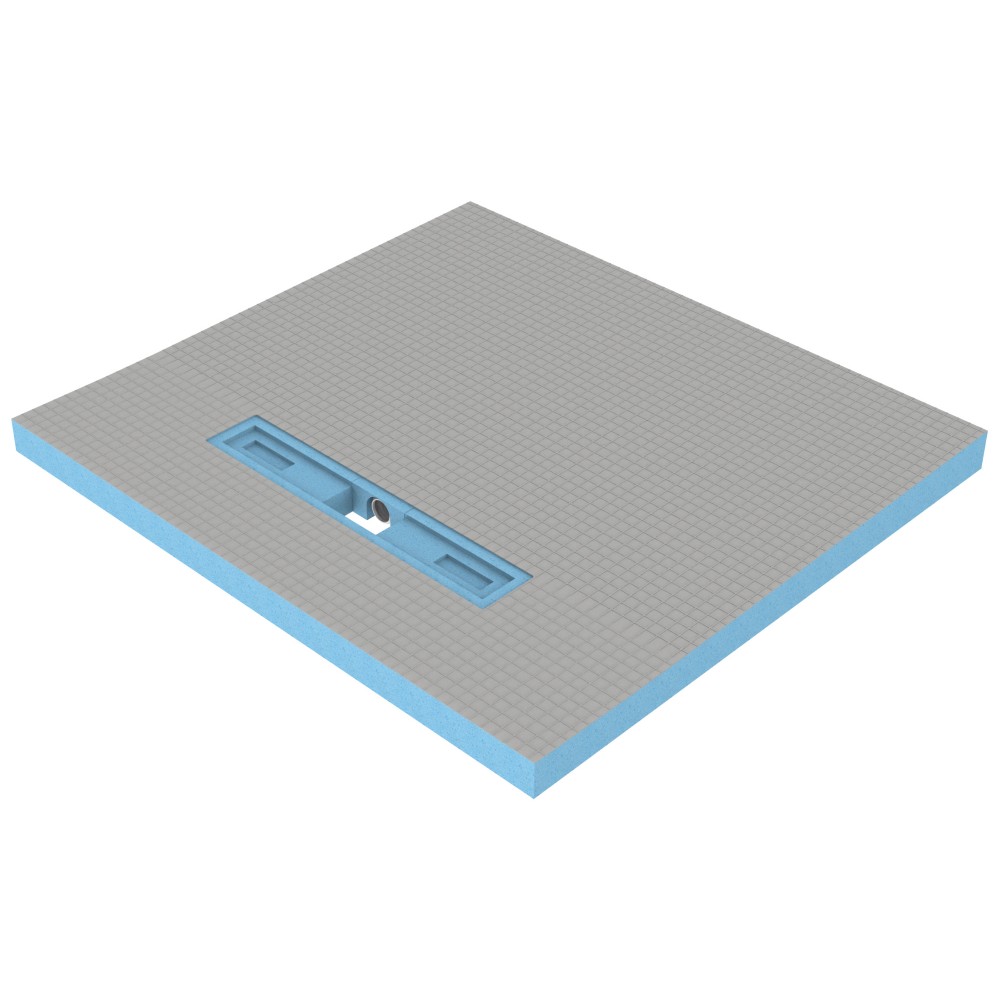

XPS shower base pan with integrated linear drain top structure

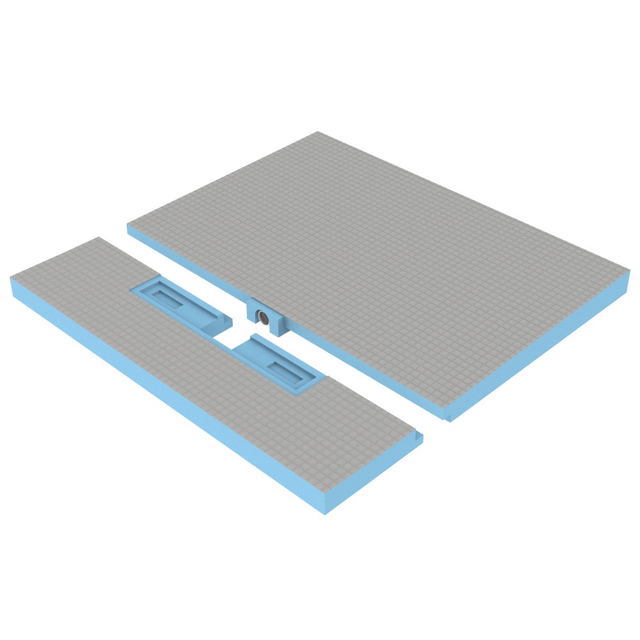

Prefabricated shower floor tray exploded XPS core structure

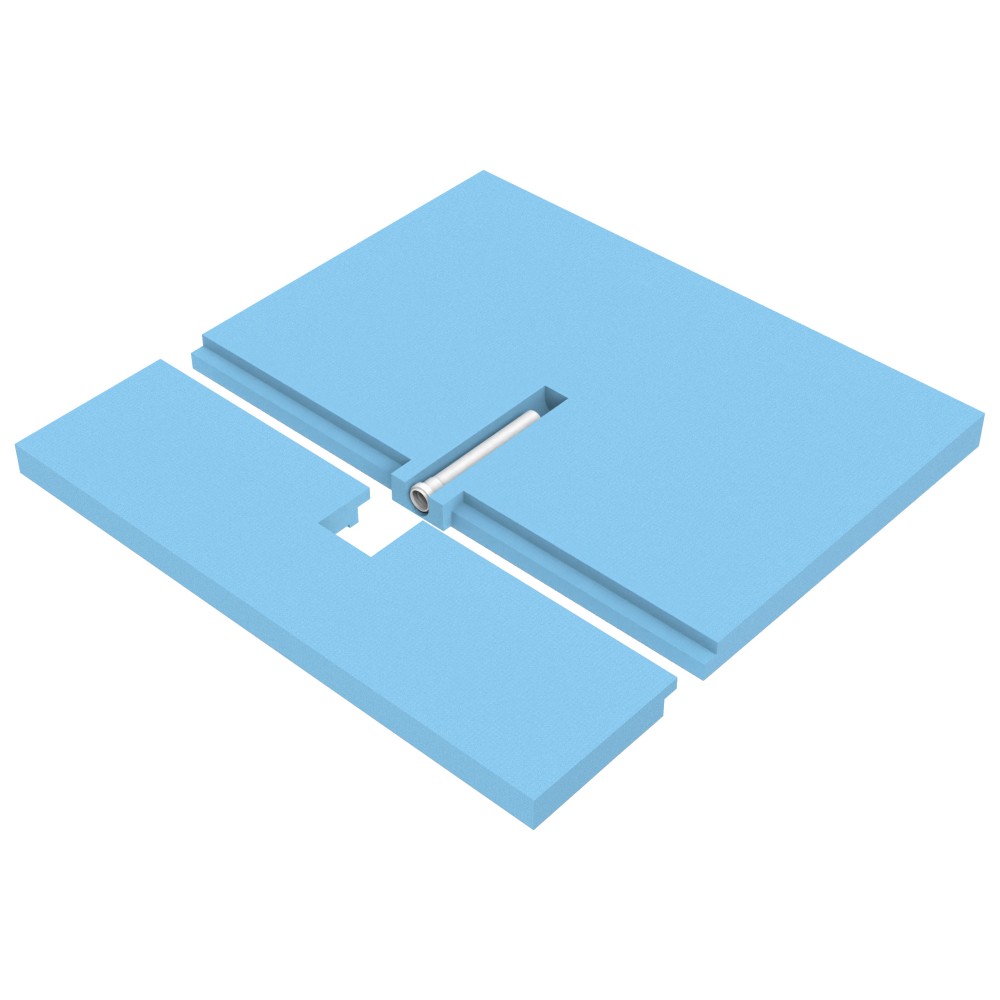

Shower floor tray showing XPS foam core and drain channel

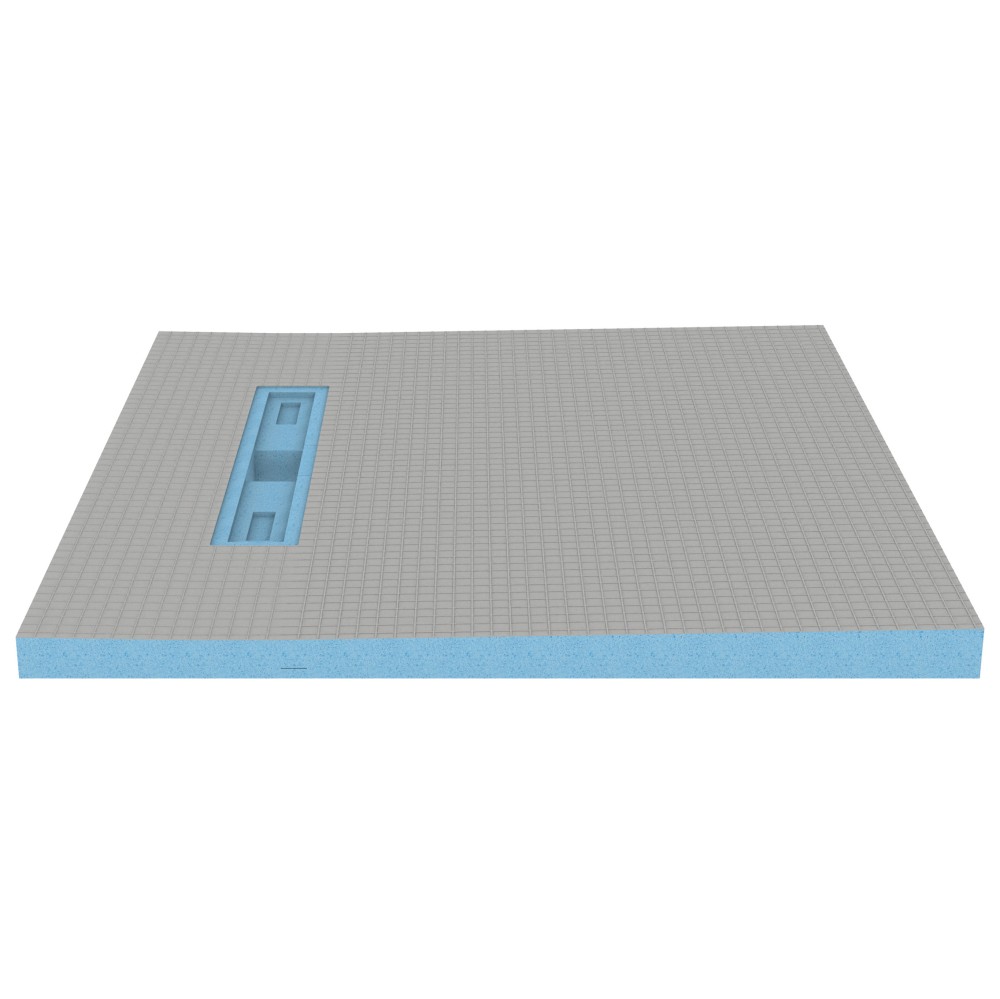

Tile-ready shower base pan with surface polymer coating

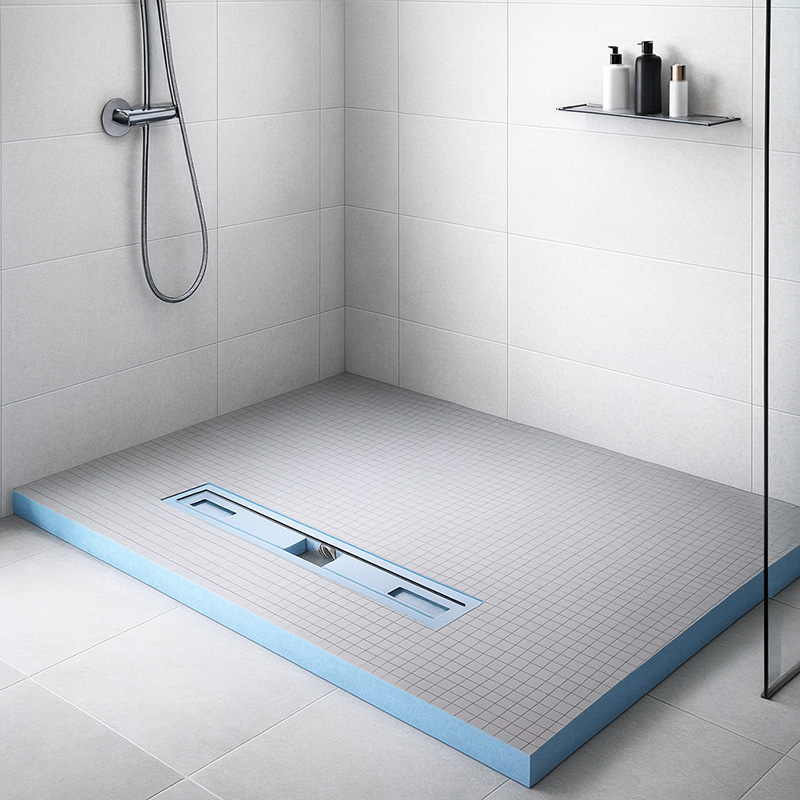

Walk-in shower floor tray installed with linear drain

Shower Drain Board

Main market: Worldwide(Hot Sales)

The Mondeway shower board is crafted from a composite panel. Its core is an extruded polystyrene (XPS) foam board, formed through an extrusion process that creates a structure of completely sealed cells encapsulated with food-grade CO₂. This structure makes the core permanently impervious to water vapor. The core is then sandwiched between two layers of an inorganic polymer coating on each side, reinforced with an alkali-resistant fiberglass mesh, which significantly enhances the board's overall performance.

  • Description


    Description

    Mondeway Shower Base Panels: Faster, Simpler, More Efficient, and Hassle-Free Shower Installation!
    Designed to meet the demands and adapt to various shower enclosure installation environments, the Mondeway Shower Base Panel offers an integrated slope for rapid, standardized floor leveling. It allows for the direct application of final surface materials such as ceramic tiles, stone slabs, or natural stone, ensuring excellent water channeling and drainage.
    This one-piece molded product, when used with complementary wall-mounted waterproof backer boards, replaces traditional waterproofing and leveling methods. It enables modular, rapid installation characterized by low cost and high efficiency. The panel is 100% waterproof, lightweight, and ensures easy, convenient installation.
  • Technical specifications


    Technical specifications

    Model No.: SDB60A
    Categories: Shower Drain Board
    Suitable for Drain: Mondeway Linear Drain Model A1
    Market: Worldwide
    Material: Polystyrene (XPS) foam
    Surface:Inorganic Polymer Coating
    Certificate: CE Approval
    DIMENSIONS (MM)
    Length: ◆1100mm ◆Customized
    Width: ◆1200mm ◆Customized
    Thickness: 75mm
    Slope Degree: 1.5°- 2.5°
    Installation Height: 75mm
    Min INSTALLATION DEPTH: 75mm
    LOCATION IN SHOWER: Free in the floor
    SEALING MEMBRANE INCLUDED (WPS): No (Acceptable)
    WHEELCHAIR ACCESSIBLE: Yes
    APPLICATION: New construction, Renovation
    SUBSTRATE: Concrete / Sand Cement, Lewis sheets, Wooden floors
    FLOOR FINISH: Cast / screed, Glass Mosaic, Natural stone, Thin tiles, Tiles / Mosaic
  • Installation


    Installation

  • Package
    SDB60A-Packing

  • DIY Ideas


    DIY service

    Mondeway® provide DIY service to meet your different requirements, if you want avoid competition for same production, this service will help you create a unique product line to stand out in the market.
    ◆ Different color for polystyrene (XPS) foam board
    ◆ Different thickness for polystyrene (XPS) foam board
    ◆ Extra Waterproofing painting(Black Color)
    ◆ Customized LOGO
    ◆ Customized sticker on box
    ◆ Customized box or color box
    ◆ Waterproofing membrane Tape
    ◆ Waterproofing membrane Corner
    ◆ Customized Bottom Board
Features             Renovation             Technology              Specs              Design







Best-choice of easy

Installation

Widely popular design



We simplify the process with a revolutionary design for faster,
effortless installation. Its exceptional reliability comes from
deep optimization for XPS systems, ensuring ultimate stability.
Choose Mondeway® for a superior building experience.




  Discover






Renovation



Better design, Easier installation



The Mondeway® XPS-specific Drain Board is designed to streamline
the installation process and enhance on-site efficiency. It features
seamless integration with XPS insulation panels, enabling quick
positioning and installation for significant time savings. Built with a
high-strength, reliable structure and an integrated design, it
fundamentally eliminates the risks of displacement and water
seepage, providing a secure and long-lasting solution for the floor
system.







Technical details
35kg/m³
Density
75mm
Minimum Board Thickness
100%
Waterproofing
3,000kgf/m²
Safe Bearing Capacity
Choose Favorite Color
Choose Favorite Style
Mondeway®: Where Engineering Meets Elegance.
We invite you to elevate your design with a splash of vibrancy, only from Mondeway®. Our premium XPS core is now offered in a sophisticated palette of colors. Move beyond the ordinary and choose a hue that reflects your creative vision. This unique feature integrates a layer of aesthetic appeal into the very foundation of your project, all while ensuring the trusted performance of the Mondeway® name.



First Time Vistor?
Wondering Our Product Customization?
Look At Our Designs
The longest 15 years warranty

100% waterproofing
We stand firmly behind the enduring performance of our XPS Shower Drainage Board. Mondeway® is so confident in the superior, 100% waterproof integrity of our one-piece molded core and its flawless installation system that we back it with a comprehensive performance guarantee against leaks for over 15 years.
