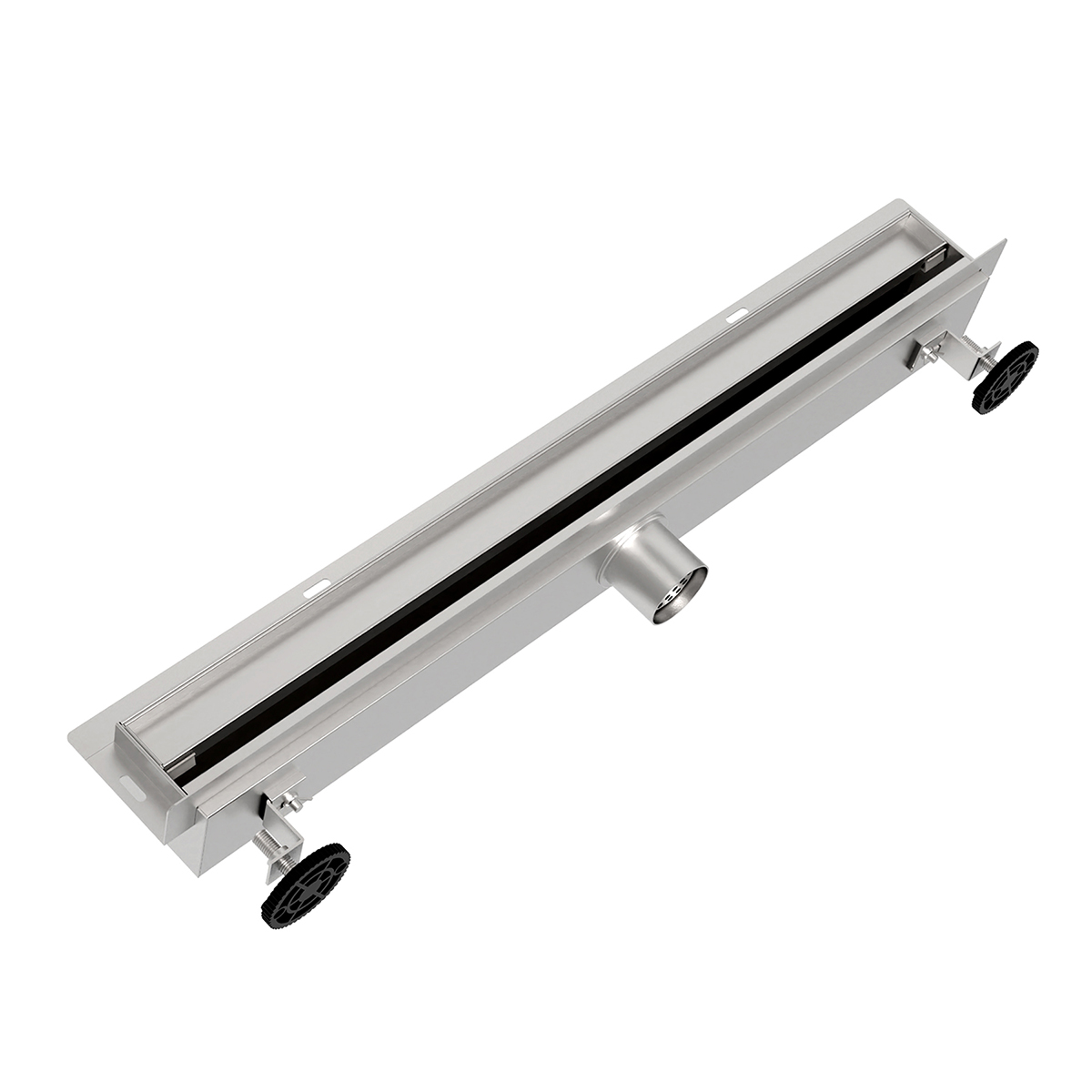

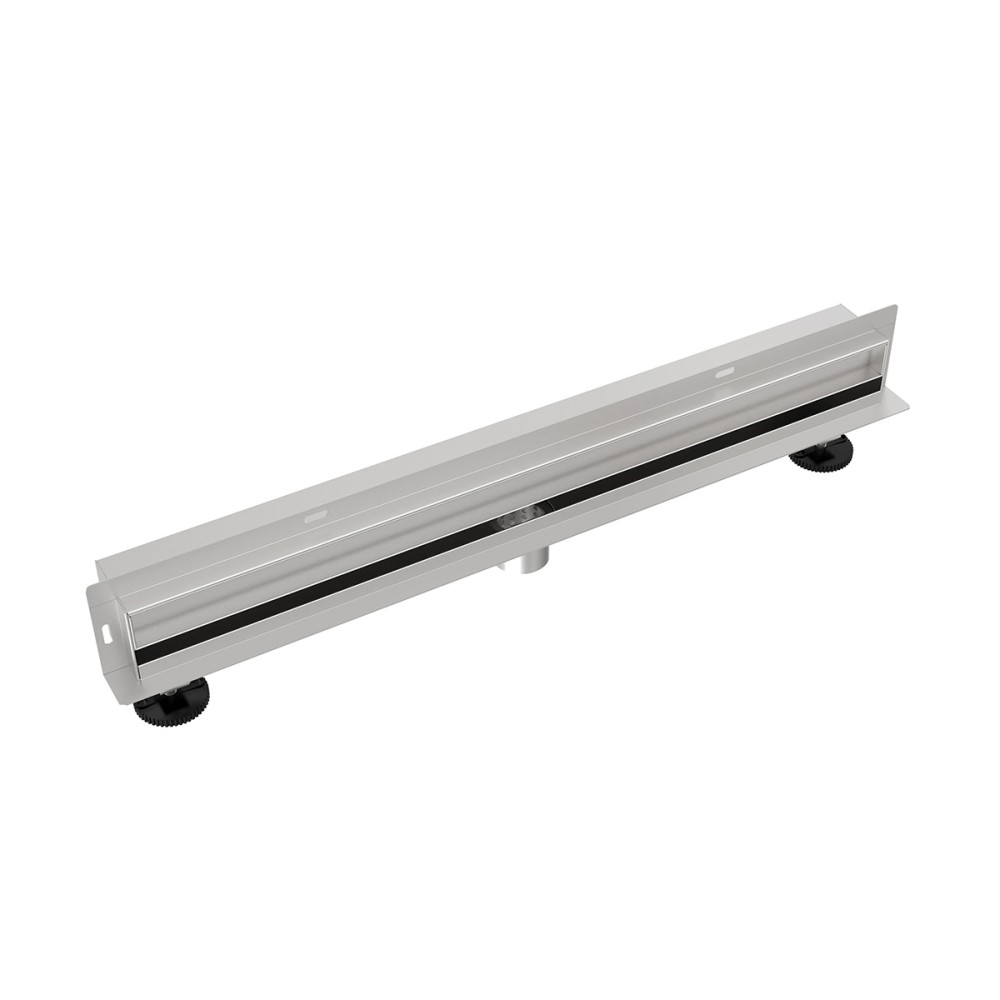

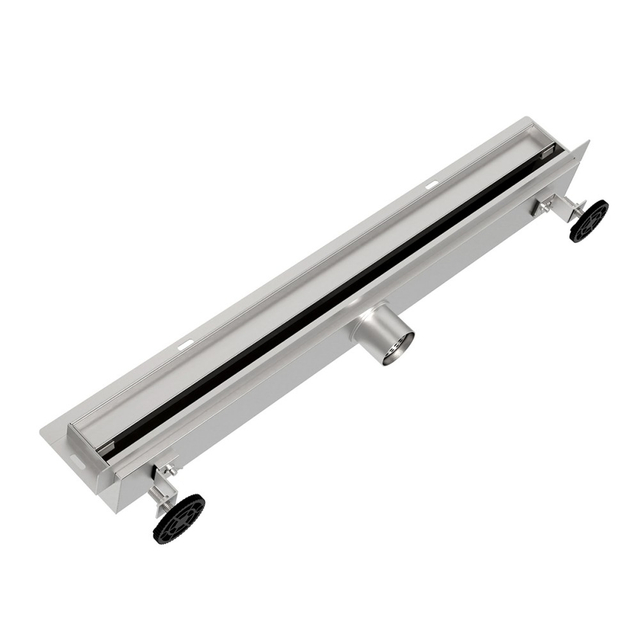

Adjustable shower wall drain stainless steel complete component system

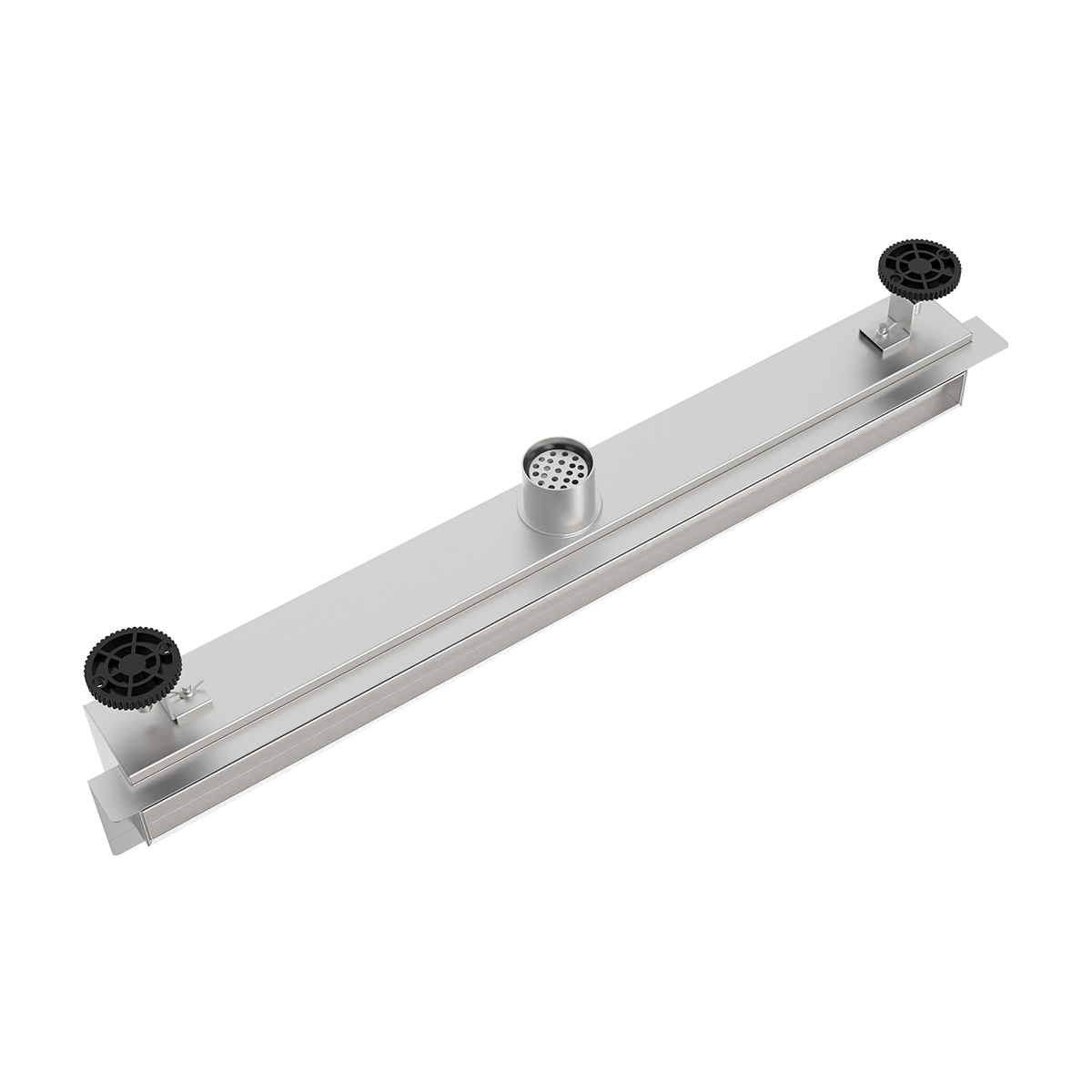

Shower wall drain stainless steel back channel structure

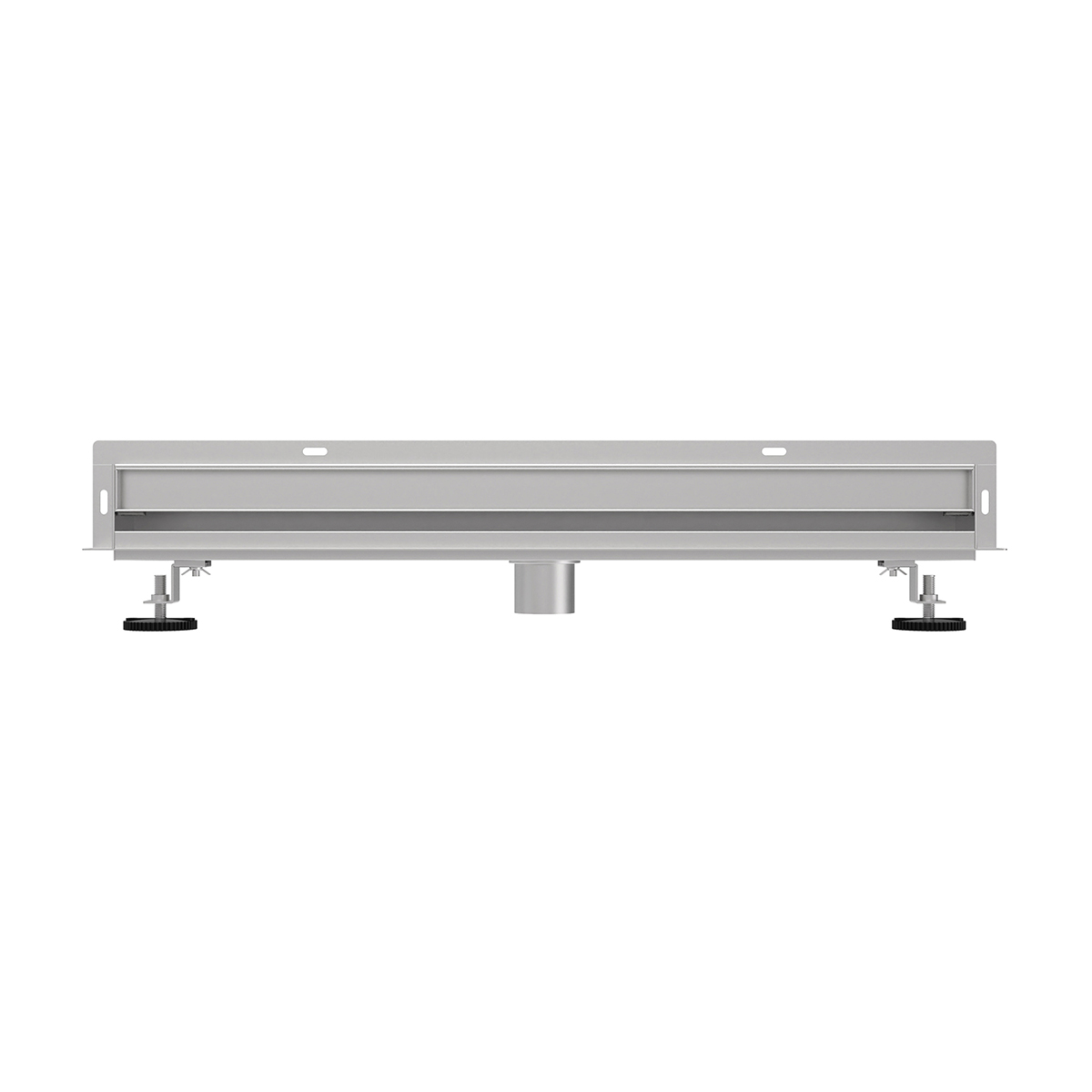

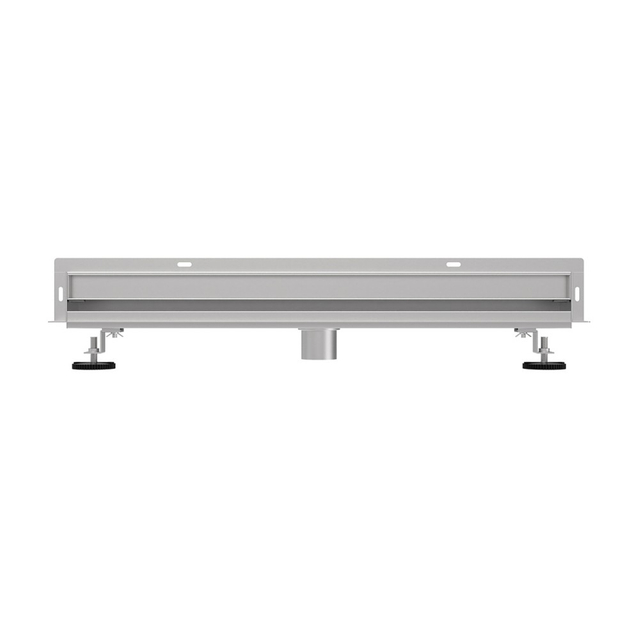

Stainless steel linear shower drain front channel for wall installation

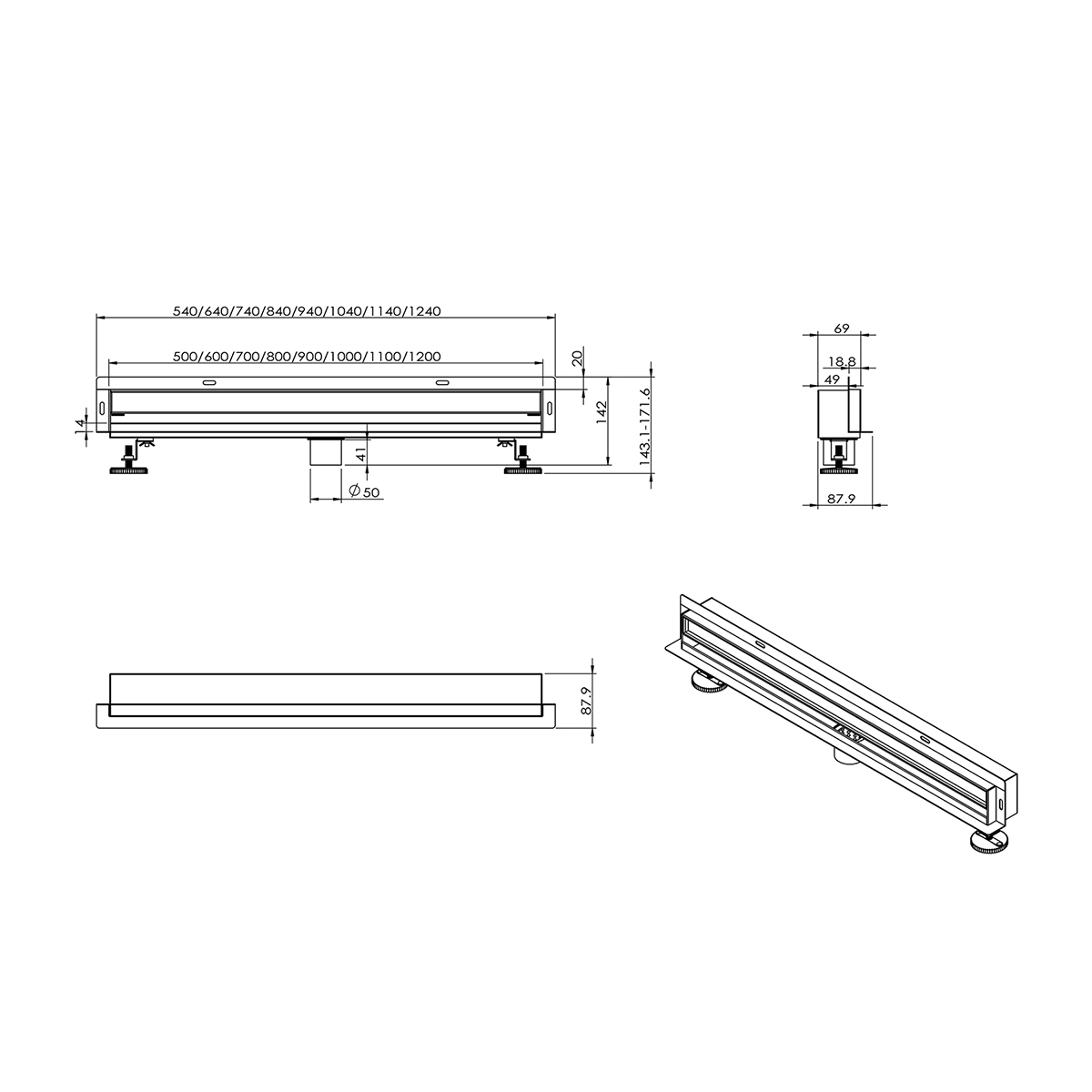

Stainless steel linear shower drain technical drawing with dimensions

Shower wall drain stainless steel linear shower drain for modern bathroom

Stainless steel linear shower drain adjustable body with vertical outlet

F Series- Model F10

Main market: Americas, Australia (HOT SALES)

Our Model F10 Linear Shower Drains deliver high-performance drainage with exceptional cost-effectiveness. Crafted from high-strength engineering plastic, this drain offers the perfect balance of durability, lightweight design, and affordability—making it a smarter choice for budget-conscious projects without compromising quality.

Description

Description

Linear Shower Drain

With the Mondeway Model F10 Linear Shower Drain you get the easy installation for vertical shower drain. Manufactured in high quality level, designed by new ideas, complied with CUPC Certificate standard ASME A112.18.2-2020/CSA B125.2-20, and Watermark Certificate standard WMTS040:2016, the Model F10 has the lowest possible installation depth, adjustable installation height, and a removable, easy-to-clean siphon with a large drainage capacity. These specifications make the Vertical Model F10 the perfect ‘problem solver’ for renovation projects.
Technical specifications

Technical specifications

SHOWER DRAIN MODEL: Linear shower drain Model F10
Categories: Shower Drains
Outlet type: Vertical outlet
Shape: Linear
OEM&ODM: Acceptable
Material:SS304
Certificate: CUPC&Watermark
Market: Americas, Australia
DIMENSIONS (MM)
Length Range:
Americas
◆12” ◆24” ◆28” ◆32” ◆36” ◆40” ◆48” ◆60” ◆72”
Australia
◆200mm ◆300mm    ◆400mm     ◆500mm   ◆600mm    ◆700mm
◆800mm   ◆900mm   ◆1000mm ◆1100mm ◆1200mm  ◆1500mm
◆1800mm  ◆2000mm  ◆2400mm   ◆other
Width: 2.68’’(68.1mm)
Installation Height:5.61”-6.02”(142.5-153mm) Adjustable
Min INSTALLATION DEPTH: 5.61”(142.5mm)
FLANGE WIDTH: 0.79”(20mm)
CONNECTION (⌀) : 2”(50mm)
HEIGHT ADJUSTABLE FEET INCLUDED: Yes
WATER SEAL (Dry & Wet): 1.42”(36mm)
LOCATION IN SHOWER: Free in the floor
MAX. DRAINAGE CAPACITY (L/MIN): 110L/min with normal siphon (70L/min upgrade optional with Dry siphon)
SEALING MEMBRANE INCLUDED (WPS): No
SIPHON CHARACTERISTICS: Cleanable (Dry siphon upgrade option)
Dry & Wet SIPHON CHARACTERISTICS: Cleanable, Higher flow rate, Permanent anti-odor, Prevent insects from entering.
GRATE: Brushed/Mirror stainless steel / Tile
GRATE PATTERN: 50+ Grate pattern design optional
COLOR OPTION: Brushed/Mirror/Electro-polished stainless steel/Matte Black/Gold
Champagne/Titanium/ Gun metal/Rose gold
ADJUSTABLE GRATE: No (Customized design acceptable)
WHEELCHAIR ACCESSIBLE: Yes
APPLICATION: New construction, Renovation
SUBSTRATE: Concrete / Sand Cement, Lewis sheets, Wooden floors
FLOOR FINISH: Cast / screed, Glass Mosaic, Natural stone, Thin tiles, Tiles / Mosaic
Installation

Installation

Introduction video

Installation Video

MW-F10-02A-Drawing.pdf
Installation Guide.pdf

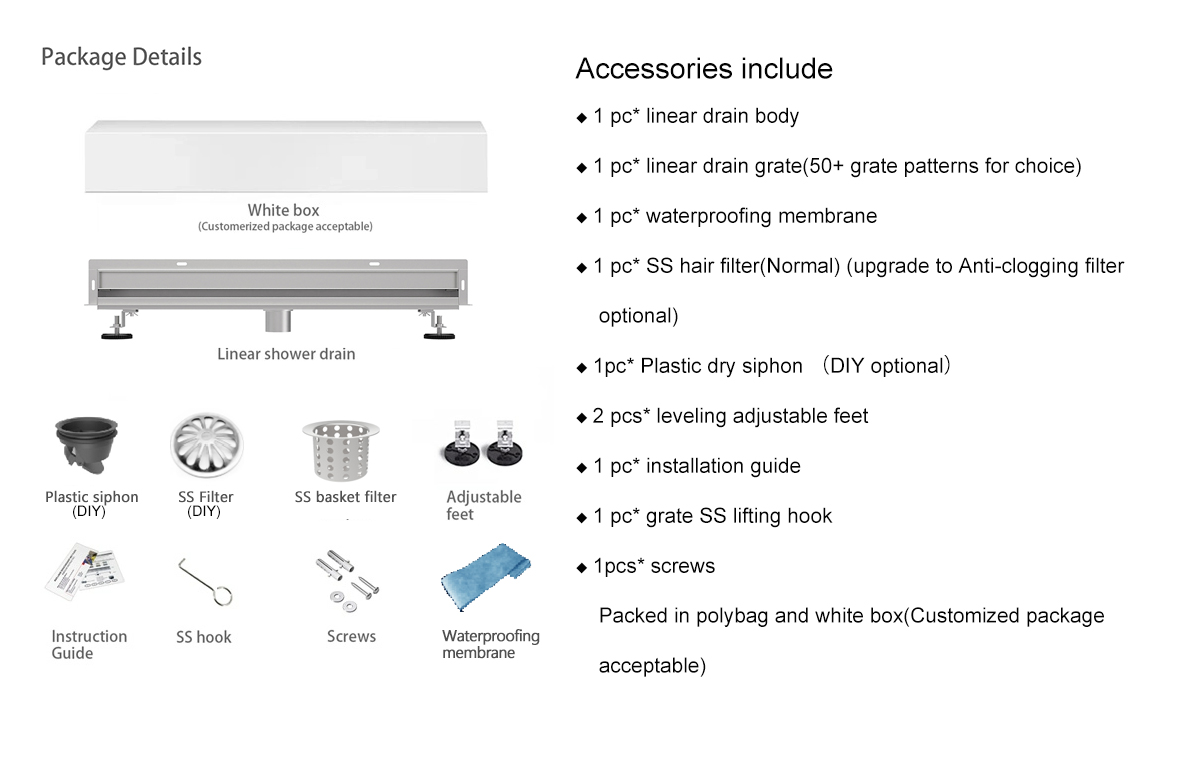

Package
DIY Ideas

DIY ideas

Mondeway® provide DIY service to meet your different requirements, if you want avoid competition for same production, this service will help you to make your own model.

◆Customized grate pattern design
◆Customized LOGO
◆Customized sticker on box
◆Customized box or color box
◆Customized surface treatment for grate
Grate surface:matte/mirror polished/brushed/colored

Features Renovation Technology Specs Design

Best-choice of easy

Installation

Widely popular design

Mondeway Drain Model F10 is developed for easy installation on

floor, and it’s produced by high quality stainless steel material,

the unique designed without flange is easy to install drain on

any place of waterproofed floor. Another advantage is it’s easy

to replace drain with very small cost because of no need to dig

all tiles out.

Discover

Renovation

Better design, Easier cleaning

Mondeway Dry siphon is an improved siphon with advantages

of Higher flow rate(70L/Min), Permanent anti-odor, Prevent

insects from entering, and requires minimum cleaning, it’s

designed with a reverse thinking to improve water input,

and with a self close and open door to get more practical

functions.

View more

Technical details

110L/min

Maximum Drainage

Capacity

1.18”(30mm)

Minimum Installation

Depth

2 sided use

Grate can be used on
both sides, one side can
be used to install tiles

22mm

Maximum Tile

Thickness

More details

Choose Favorite Color

Choose Favorite Style

Our Mondeway Drain series provides you with the opportunity to design your bathroom exactly as you want it. The program offers unique design sets that are perfect for small and large-sized shower floors. With the modern and timeless design grates, you have the opportunity to personalize your shower sensation.

View all

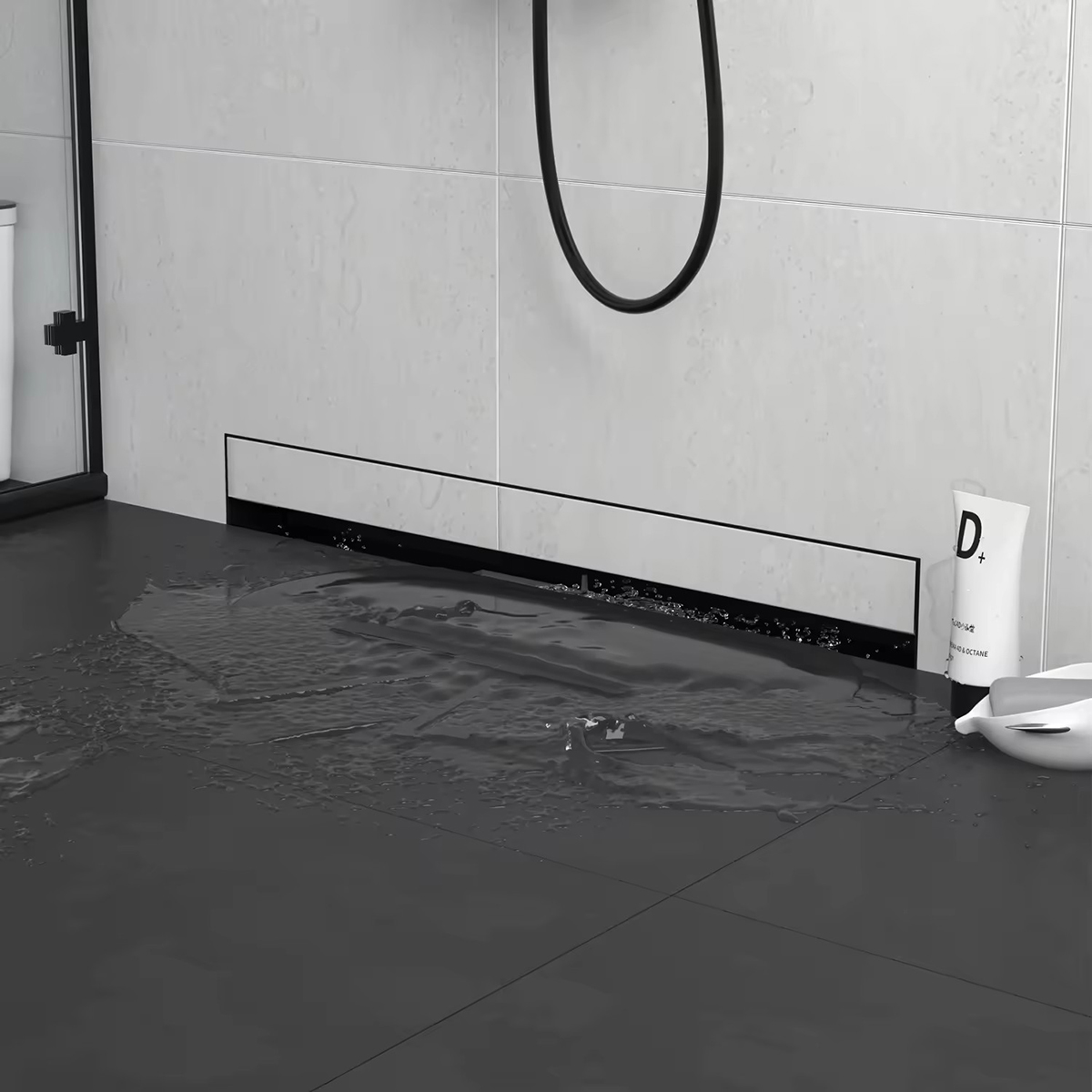

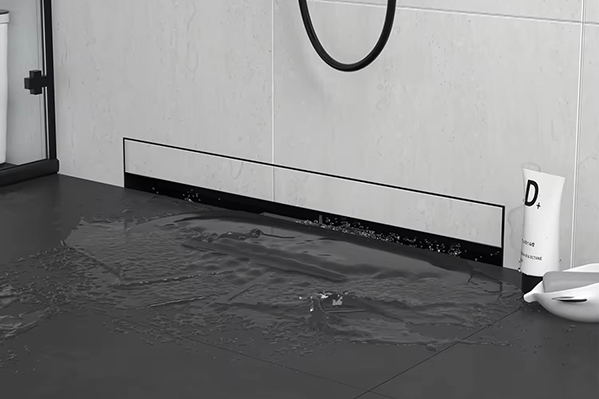

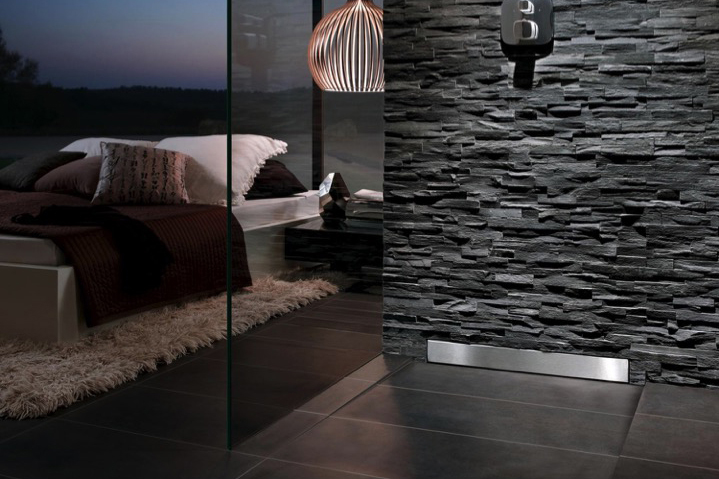

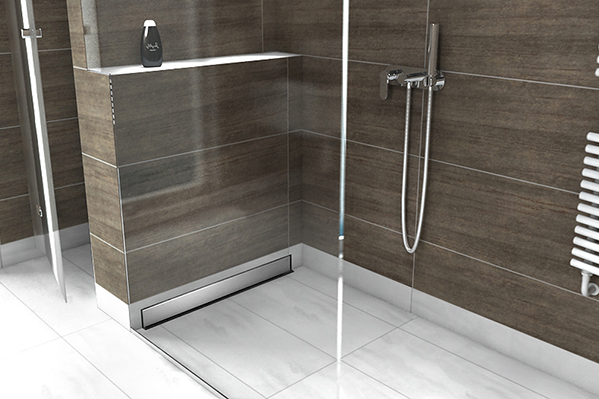

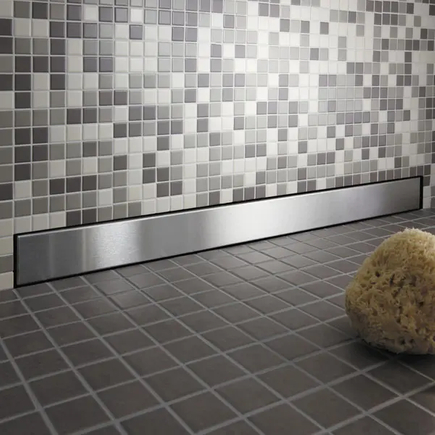

Stainless steel shower wall drain application

First Time Vistor?

Wondering Our Product Customization?
Look At Our Designs

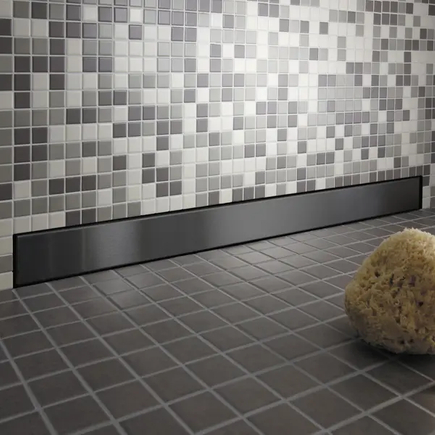

02A Brushed

The invisible water flow design, they are mix between tile and drain, and they create a seamless look in your shower or on your floor so that water magically disappears without having to run down into an ugly drain in the middle of the floor.

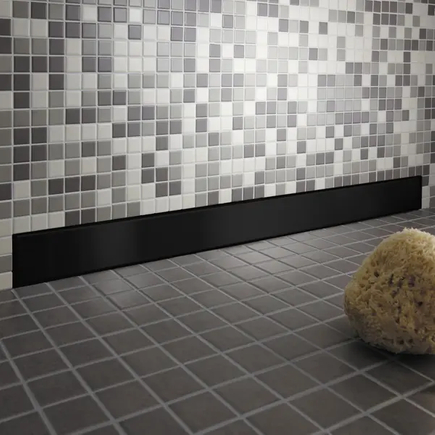

02APB Matte Black

Matte black is an unsaturated shade of black with the low in brightness and non-reflective or shiny. Matte black is growing in popularity, from clothes and interior design to being a new color option for the Surface Pro.
02A Brushed

The invisible water flow design, they are mix between tile and drain, and they create a seamless look in your shower or on your floor so that water magically disappears without having to run down into an ugly drain in the middle of the floor.

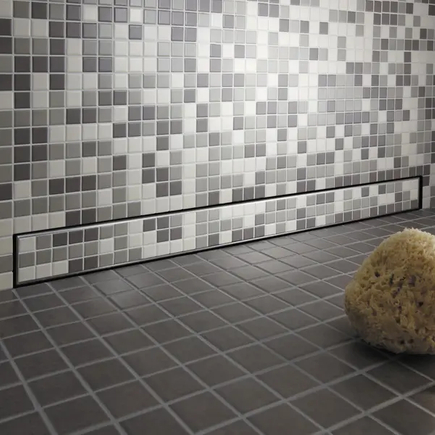

01A Brushed

Reversible tile inserts are perfect for shower and bathroom drainage applications.
It's designed with reversible idea which is easy to turn up the grate with feet, you can enjoy different shower time.

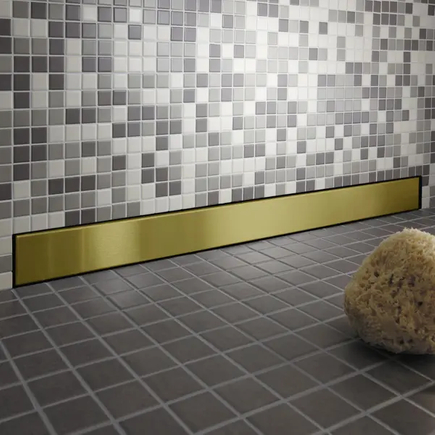

02BTG Brushed Luxury Gold

Luxury Gold, named after the precious metal, is the color of luxury, success, achievement, and triumph. It is closely related to royalty, wealth, and, of course, money.

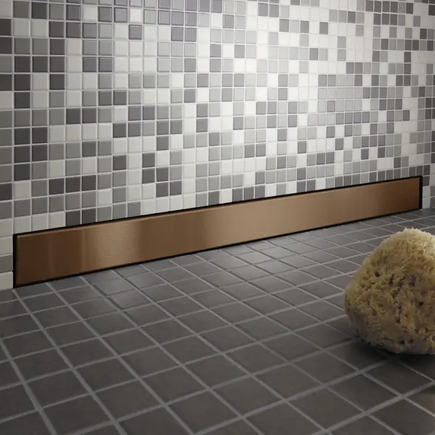

02A BRG Brushed Rose Gold

This elegant finish features a delicate pink-gold tone with a warm, romantic glow. The soft hue strikes a perfect balance between subtle sophistication and modern charm.The matte texture enhances the color's depth, creating a refined look that complements both contemporary and classic designs.

02A Brushed

The invisible water flow design, they are mix between tile and drain, and they create a seamless look in your shower or on your floor so that water magically disappears without having to run down into an ugly drain in the middle of the floor.
02APB Matte Black

Matte black is an unsaturated shade of black with the low in brightness and non-reflective or shiny. Matte black is growing in popularity, from clothes and interior design to being a new color option for the Surface Pro.
02A Brushed

The invisible water flow design, they are mix between tile and drain, and they create a seamless look in your shower or on your floor so that water magically disappears without having to run down into an ugly drain in the middle of the floor.
01A Brushed

Reversible tile inserts are perfect for shower and bathroom drainage applications.
It's designed with reversible idea which is easy to turn up the grate with feet, you can enjoy different shower time.
02BTG Brushed Luxury Gold

Luxury Gold, named after the precious metal, is the color of luxury, success, achievement, and triumph. It is closely related to royalty, wealth, and, of course, money.
02A BRG Brushed Rose Gold

This elegant finish features a delicate pink-gold tone with a warm, romantic glow. The soft hue strikes a perfect balance between subtle sophistication and modern charm.The matte texture enhances the color's depth, creating a refined look that complements both contemporary and classic designs.

The longest 15 years warranty

100% waterproofing
We offer 15-years warranty on drain leakages problems. Our system consists
of a flexible waterproofing membrane which is connected to
the drains stainless steel flanges or special cuff. This way,
leaking as a result of faulty installation due to unfavorable
conditions is eliminated.
