MW-B1-01A

Main market: Europe (HOT SALES)

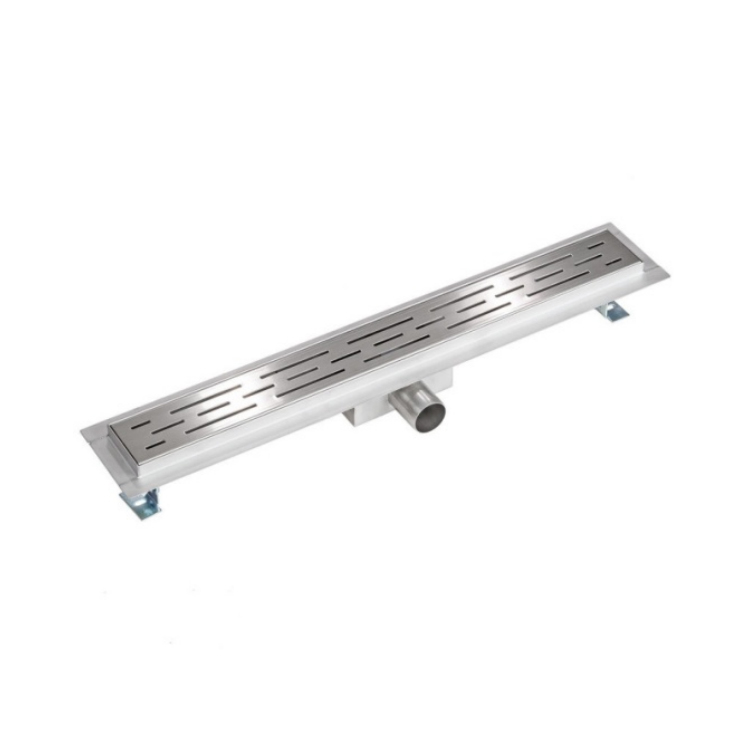

Our Model B1 Linear shower drains offer drainage solutions for a wide range of situations. The unique flange design is widely popular
in the market because of the advantage of easy installation for tiles, after many years development, it has improved step by step and now becomes a star products with higher quality and better price. At mean time, the function of accessories have been upgraded with advantages of bigger flow rate, longtime anti-odor, not easy clog, adjustable installation height, easy installation, etc.

Availability:

Quantity:



Inquire Add to Basket PDF Export

Linear Shower Drain
Problem solver for renovation projects
With the Mondeway Model B1 Linear Shower Drain you get the easy installation for horizontal shower drain. Manufactured in high quality level, designed by new ideas, complied with standard EN1253, the Model A1 has the lowest possible installation depth, easy install for tiles, adjustable installation height, and a removable, easy-to-clean siphon with a large drainage capacity. These specifications make the Horizontal Model B1 the perfect‘problem solver’for renovation projects.

Description

Description

Linear Shower Drain
Problem solver for renovation projects
With the Mondeway Model A1 Linear Shower Drain you get the easy installation for horizontal shower drain. Manufactured in high quality level, designed by new ideas, complied with standard EN1253, the Model A1 has the lowest possible installation depth, easy install for tiles, adjustable installation height, and a removable, easy-to-clean siphon with a large drainage capacity. These specifications make the Horizontal Model A1 the perfect‘problem solver’for renovation projects.
Technical specifications

Technical specifications

SHOWER DRAIN MODEL: Linear shower drain Model A1
Categories: Shower Drains
Outlet type: Horizontal outlet
Flange width: 20mm
Shape: Linear
OEM&ODM: Acceptable
Material: Stainless steel 304 ( 316 optional)
Certificate: CE EN1253
Market: Europe
DIMENSIONS (MM)
Length Range:
◆200mm ◆300mm ◆400mm ◆500mm ◆600mm ◆700mm
◆800mm ◆900mm ◆1000mm ◆1100mm ◆1200mm ◆1500mm
◆1800mm ◆2000mm ◆2400mm ◆other
Width: 70mm
Installation Height: 70-95mm Adjustable
Min INSTALLATION DEPTH: 70mm
CONNECTION (⌀) : 40mm or 50mm
HEIGHT ADJUSTABLE FEET INCLUDED: Yes
WATER SEAL (Normal): 32mm
WATER SEAL (Dry & Wet): 28mm
LOCATION IN SHOWER: Free in the floor
MAX. DRAINAGE CAPACITY (L/MIN): 35L/min with normal siphon(42L/min upgrade optional with Dry & Wet siphon)
SEALING MEMBRANE INCLUDED (WPS): Yes
SIPHON CHARACTERISTICS: Cleanable (Dry & Wet siphon upgrade option)
Dry & Wet SIPHON CHARACTERISTICS: Cleanable, Higher flow rate, Permanent anti-odor, Prevent insects from entering.
GRATE: Brushed/Mirror stainless steel / Tile
GRATE PATTERN: 50+ Grate pattern design optional

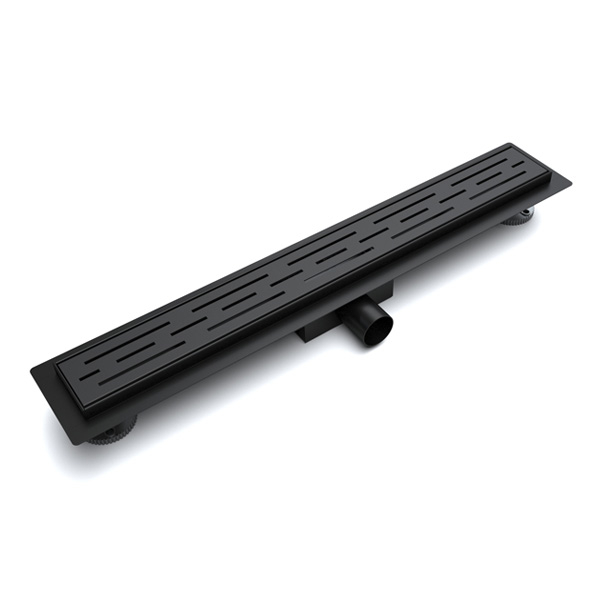

COLOR OPTION: Brushed/Mirror/Electro-polished stainless steel/Matte Black/Gold
Champagne/Titanium/ Gun metal/Rose gold
ADJUSTABLE GRATE: No(Customized design acceptable)
WHEELCHAIR ACCESSIBLE: Yes
APPLICATION: New construction, Renovation
SUBSTRATE: Concrete / Sand Cement, Lewis sheets, Wooden floors
FLOOR FINISH: Cast / screed, Glass Mosaic, Natural stone, Thin tiles, Tiles / Mosaic
Installation

Installation

Introduction video

Installation Video
MW-A1-01A Drawing.pdf
Installation Guide.pdf
Package
DIY Ideas

DIY service

Mondeway® provide DIY service to meet your different requirements, if you want avoid competition for same production, this service will help you to make your own model.
◆ Stainless steel 304 siphon to replace
◆ Plastic Dry & Wet siphon
◆ Stainless steel 304 hair filter to replace
◆ Plastic Anti-clogging hair filter
◆ Stainless steel 304 anti-clogging hair filter
◆ Customized grate pattern design
◆ Customized LOGO
◆ Customized sticker on box
◆ Customized box or color box
◆ Customized surface treatment for base and grate
BASE surface: matte/Electrical polished/ brushed/ colored
Grate surface: matte/mirror polished/ brushed/ colored
