Optimized for direct floor-slab penetration. Our triangular vertical series eliminates hydraulic dead-zones in corner shower pods. Engineered for high-rise developments requiring 100% mechanical alignment with 50mm-75mm stacks.
Standard drains in corners create stagnant "dead-zones." The J-Series triangular geometry funnels surface tension towards the central vertical hub, accelerating discharge velocity by 35% compared to rectangular mitered setups.

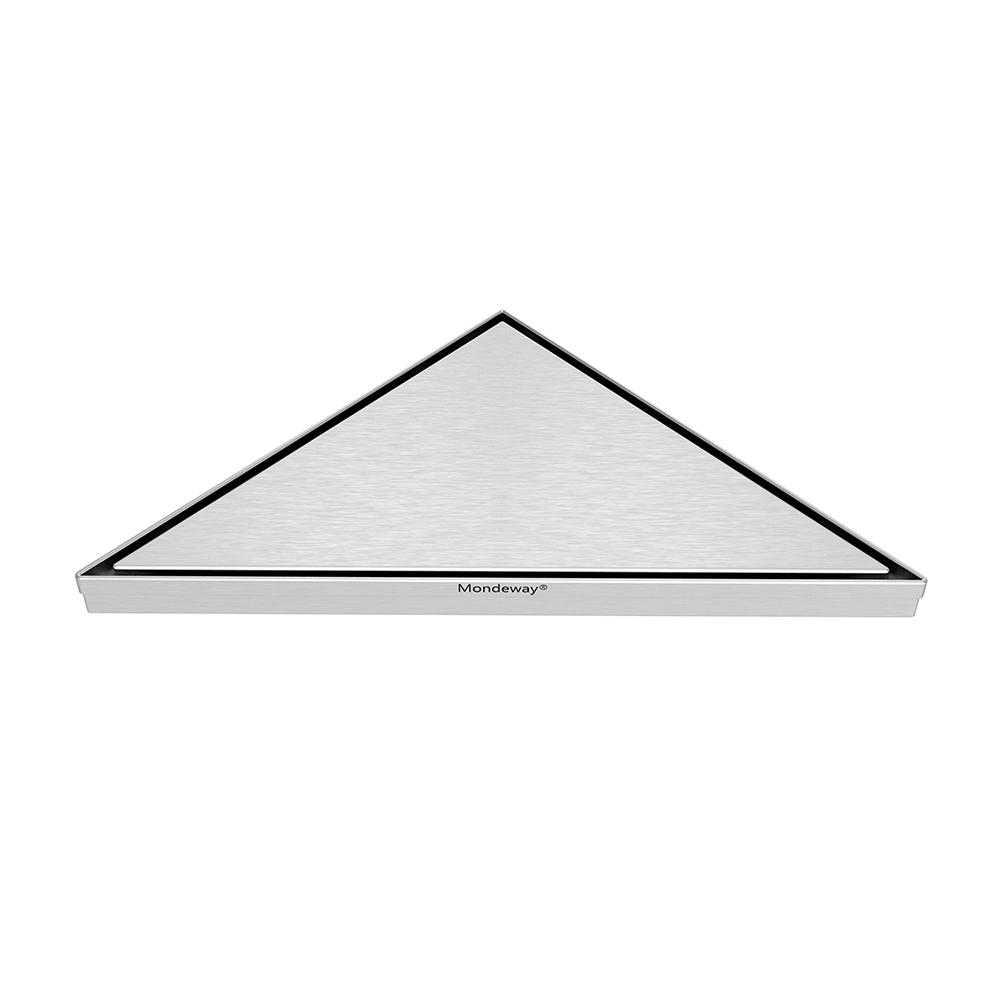

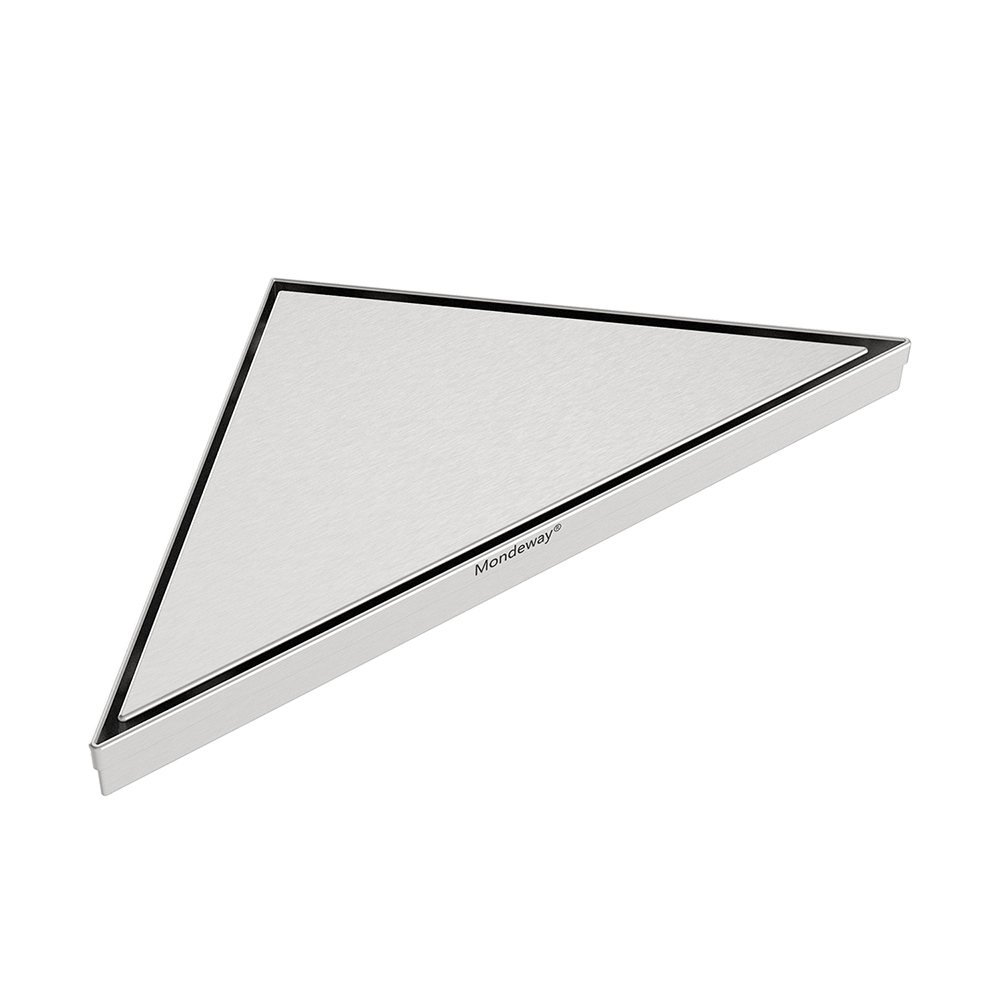

Flat Grate / Universal Vertical

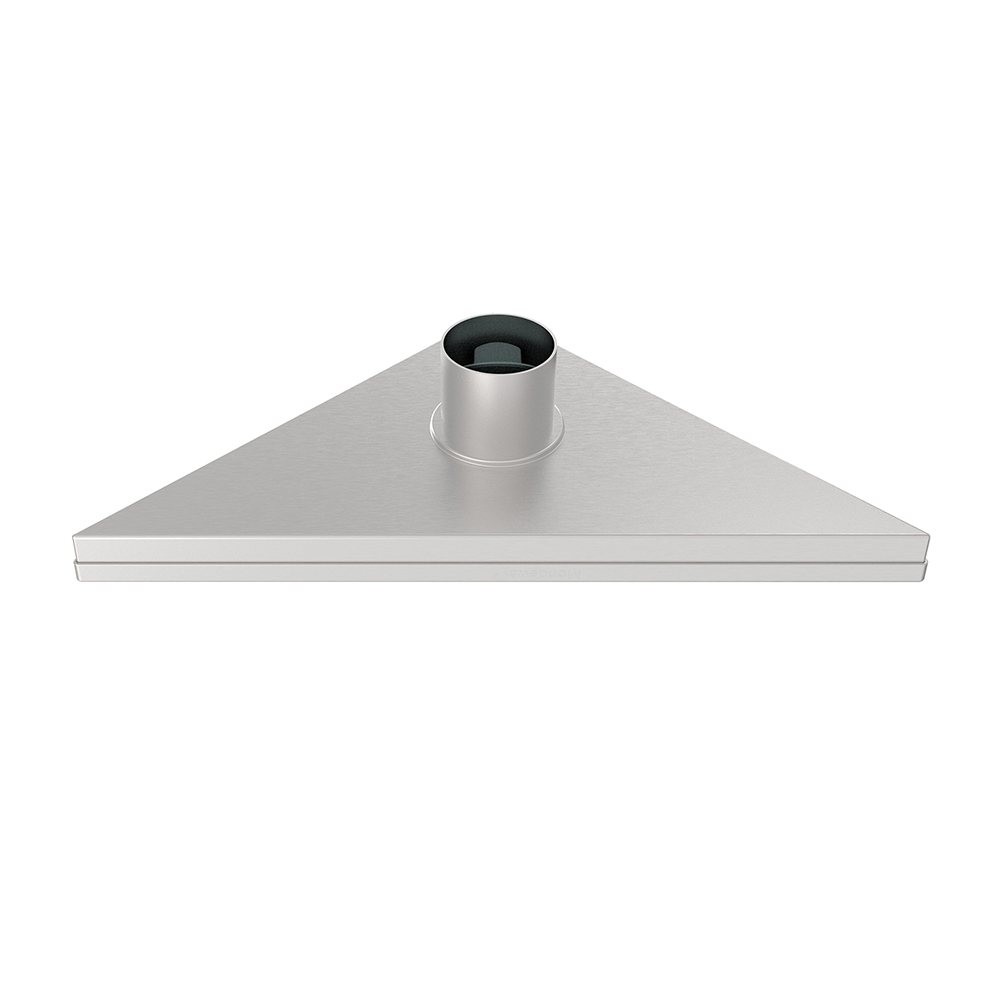

Industrial Sealing & Hub Structure
Problem: Hotel renovations hit structural slab beams during corner drain alignment.
Solution: The J-Series Vertical Hub requires only 70mm penetration depth. By leveraging our Malaysian plant, Mondeway secures project timelines with zero-tariff risks for North American developers.
Intent: Optimized for bulk hospitality retrofits and modular pod manufacturing.
| Spec Parameters | Standard J-Series Verti | Project Series (SUS316) | B2B Impact |
|---|---|---|---|
| Material Density | SUS304 1.2mm Chassis | SUS316L 1.5mm Chassis | Marine-grade corrosion resistance |
| Discharge Velocity | 36 L/min | 48 L/min | Exceeds international high-flow codes |
| Outlet Profile | Central Vertical 2.0" | Adjustable Vertical Stack | Eliminates stack-alignment labor |
| PVD Coating | Diamond Black / Brushed | Anti-Salt Gold / Custom | Resistant to commercial acid cleaners |
