Optimized for 90° corner pods where floor height is critical. Our triangular horizontal series features a 360° rotatable siphon, enabling side-discharge routing without compromising the structural floor reinforcement.
Visualizing the siphon draw of our corner-optimized lateral discharge hub.

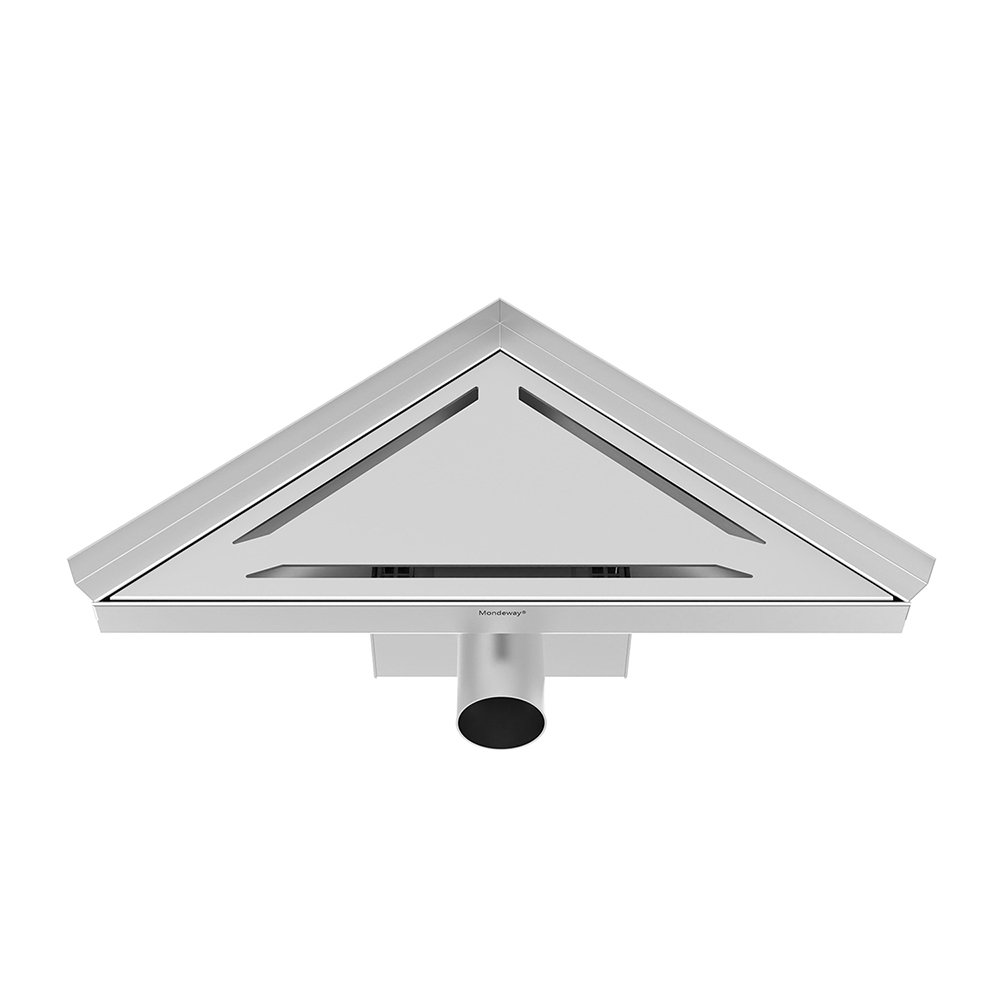

Brushed SUS304 / Side Discharge

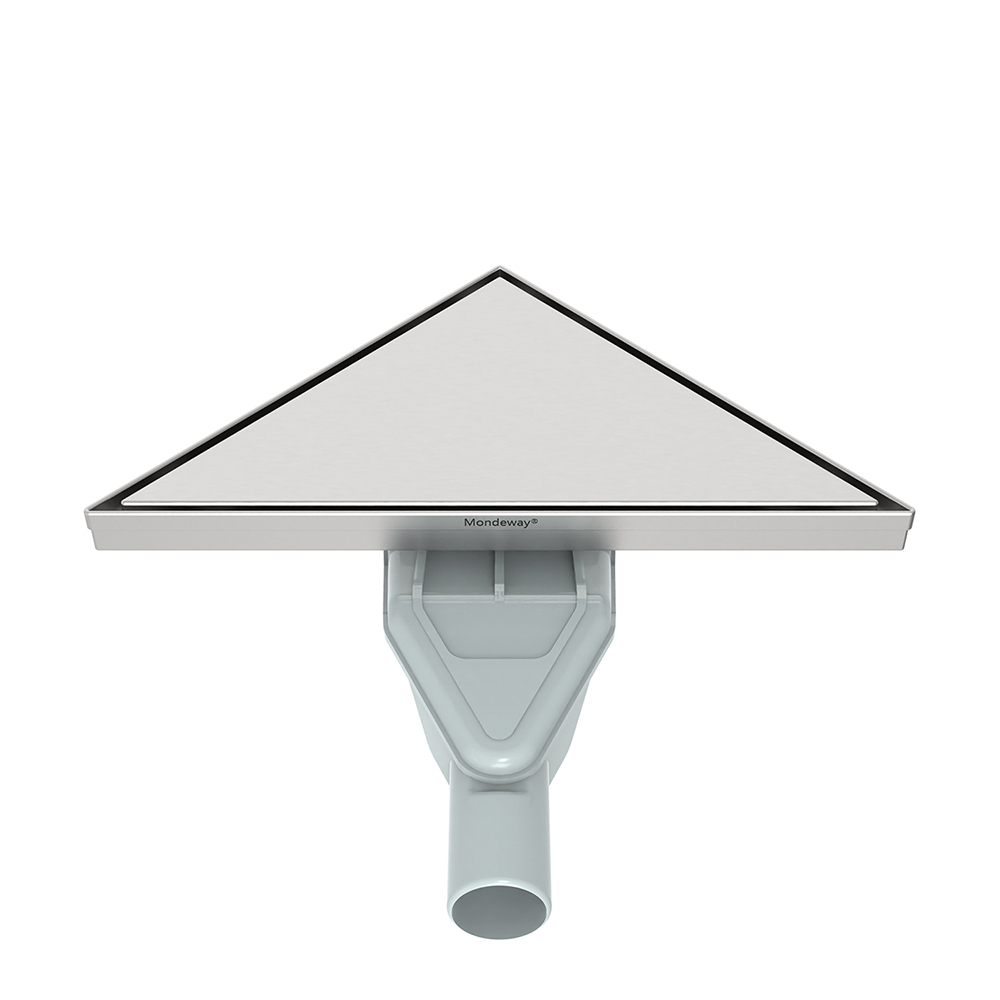

Low-Profile 360° Rotatable Hub
Standard vertical drains require floor penetration exactly at the corner hub. In hospitality renovations, this often hits structural beams.
Mondeway Strategy: Our horizontal outlet series routes water laterally within the floor screed. 88% of our B2B partners specify this series to bypass plumbing stack alignment conflicts.
B2B Intent: Ideal for project managers seeking zero-maintenance solutions for luxury resort wet-rooms.
| Spec Parameters | J-Series Hori Standard | Project Series (Custom) | B2B Advantage |
|---|---|---|---|
| Material Density | SUS304 1.2mm Chassis | SUS316L 1.5mm Chassis | Structural longevity in commercial use |
| Siphon Logic | 360° Horizontal Rotate | Fixed Side-Discharge | Eliminates pipe-alignment labor costs |
| Discharge Velocity | 32 L/min @ 15mm Head | 48 L/min @ 15mm Head | Exceeds international high-flow codes |
| Certification | CUPC / CE / Watermark | UL / ETL Listed | Pre-approved for global building codes |
