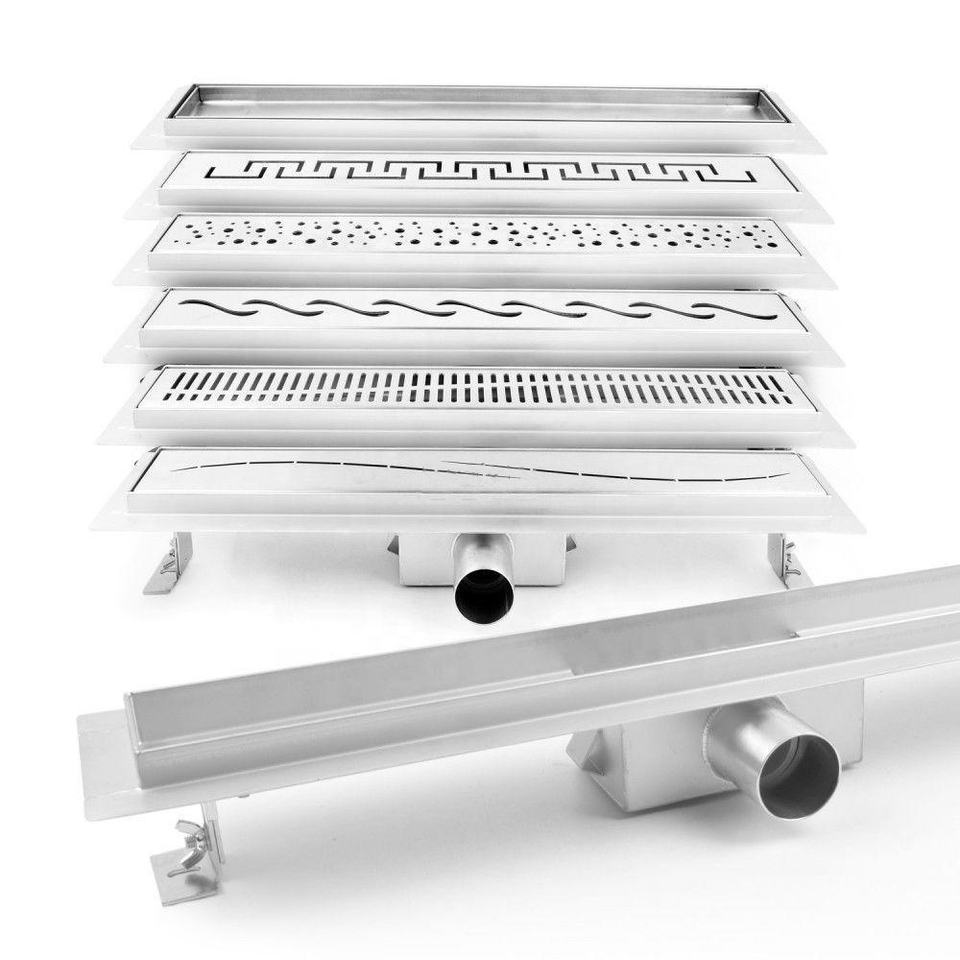

SS304 SS316 with high quality stainless steel linear drain for bathroom horizontal outlet Europe Model

Size:
200mm
300mm
400mm
500mm
600mm
700mm
800mm
900mm
Color:
Silver
Silver
Availability:
Quantity:
Inquire Add to Basket

PDF Export

  • A series

  • Mondeway

SS304/316 with high quality stainless steel linear drain for outdoor floor drainer/ bathroom accessories of GOOD QUALITY

As bathrooms break away from boring, comfort and beauty have become must-haves, instead of nice-to-haves. Bathrooms are new areas of retreat-an oasis,really, in the comfort of home.

MONDEWAY® Linear Shower Drains are available in several standard sizes. Our MONDEWAY Linear Shower Drain with Tile Insert Tray & channel in standard lengths of 500mm, 600mm, 700mm, 800mm, 900mm, 1000mm, 1100mm, and 1200mm.

customerized size is also acceptable.

A Series - Model No.: MW-A1-01A Main market: Europe (HOT SALES)

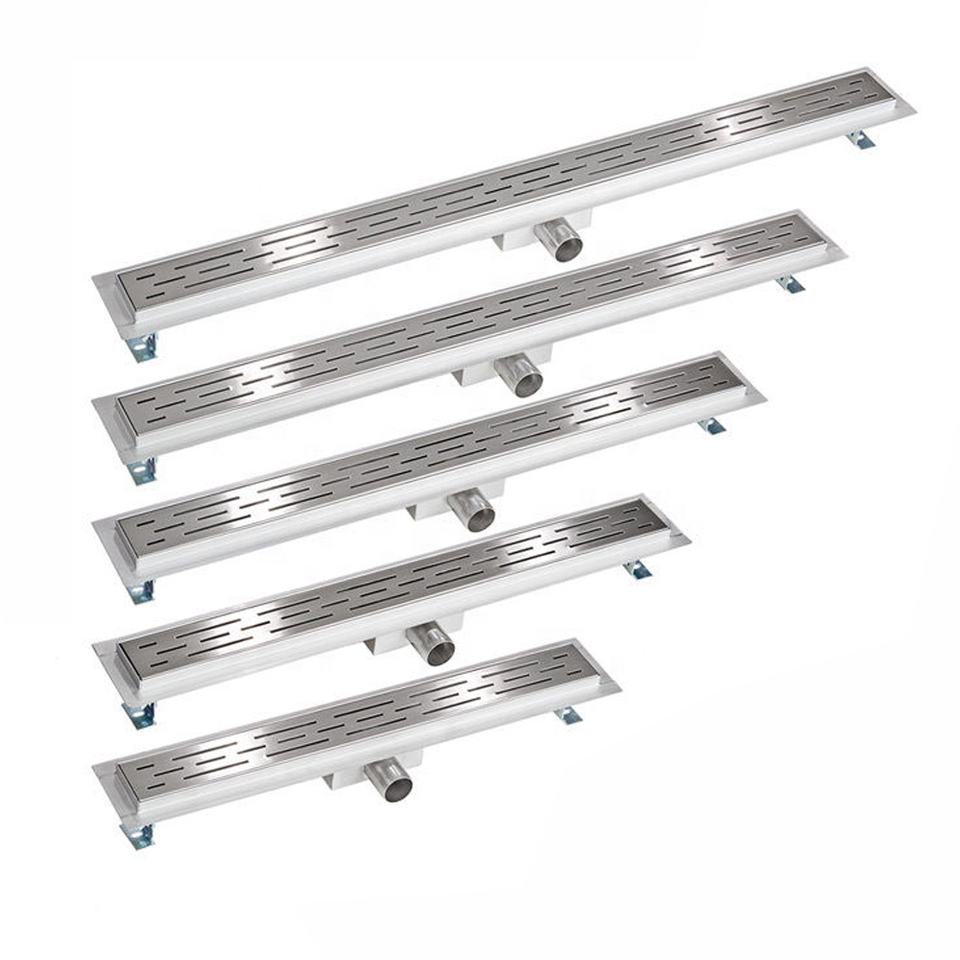

Length Range
*200mm *300mm *400mm *500mm *600mm *700mm
*800mm *900mm *1000mm *1100mm *1200mm *1500mm
*1800mm *2000mm *2400mm *other


Warranty: More than 5 years

After-sale Service: Online technical support

Size: 500mm

Project Solution Capability: 3D model design

Application: Hotel, FLOOR

Design Style: Modern

Place of Origin: Zhejiang, China

Brand Name: Mondeway

Model Number: A series

Surface Treatment: Lacquered

Style: Strainer

Type: Drains

Brand name: Mondeway

Name of product: Linear Shower Drain

Material: SUS304/316

Surface: Brushed/Mirror/Colored

Length: 200-2500mm

Port: Ningbo


  • Selling Units: Multiple of 1

  • Package size per batch: 56X16X8 cm

  • Gross weight per batch: 2.300 kg

  • Package Type: Each piece packed in a white box,put many pieces in a brown box,and pack on pallets.

  • Lead Time:

    Quantity(sets) 1 - 2 3 - 1000 1001 - 5000 >5000
    Est. Time(days) 15 20 30 To be negotiated


  • Description


    Description

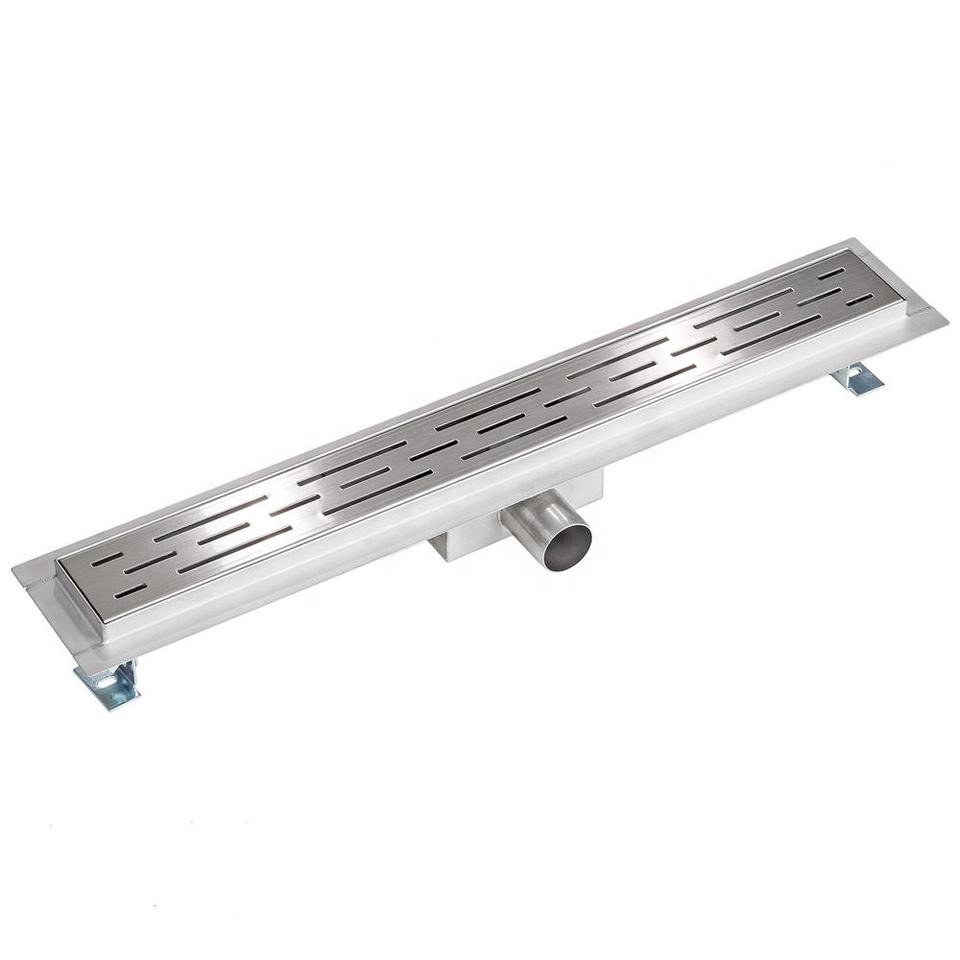

    Linear Shower Drain
    Problem solver for renovation projects
    With the Mondeway Model A1 Linear Shower Drain you get the easy installation for horizontal shower drain. Manufactured in high quality level, designed by new ideas, complied with standard EN1253, the Model A1 has the lowest possible installation depth, easy install for tiles, adjustable installation height, and a removable, easy-to-clean siphon with a large drainage capacity. These specifications make the Horizontal Model A1 the perfect‘problem solver’for renovation projects.
  • Technical specifications


    Technical specifications

    SHOWER DRAIN MODEL: Linear shower drain Model A1
    Categories: Shower Drains
    Outlet type: Horizontal outlet
    Flange width: 20mm
    Shape: Linear
    OEM&ODM: Acceptable
    Material: Stainless steel 304 ( 316 optional)
    Certificate: CE EN1253
    Market: Europe
    DIMENSIONS (MM)
    Length Range:
    ◆200mm ◆300mm ◆400mm ◆500mm ◆600mm ◆700mm
    ◆800mm ◆900mm ◆1000mm ◆1100mm ◆1200mm ◆1500mm
    ◆1800mm ◆2000mm ◆2400mm ◆other
    Width: 70mm
    Installation Height: 70-95mm Adjustable
    Min INSTALLATION DEPTH: 70mm
    CONNECTION (⌀) : 40mm or 50mm
    HEIGHT ADJUSTABLE FEET INCLUDED: Yes
    WATER SEAL (Normal): 32mm
    WATER SEAL (Dry & Wet): 28mm
    LOCATION IN SHOWER: Free in the floor
    MAX. DRAINAGE CAPACITY (L/MIN): 35L/min with normal siphon(42L/min upgrade optional with Dry & Wet siphon)
    SEALING MEMBRANE INCLUDED (WPS): Yes
    SIPHON CHARACTERISTICS: Cleanable (Dry & Wet siphon upgrade option)
    Dry & Wet SIPHON CHARACTERISTICS: Cleanable, Higher flow rate, Permanent anti-odor, Prevent insects from entering.
    GRATE: Brushed/Mirror stainless steel / Tile

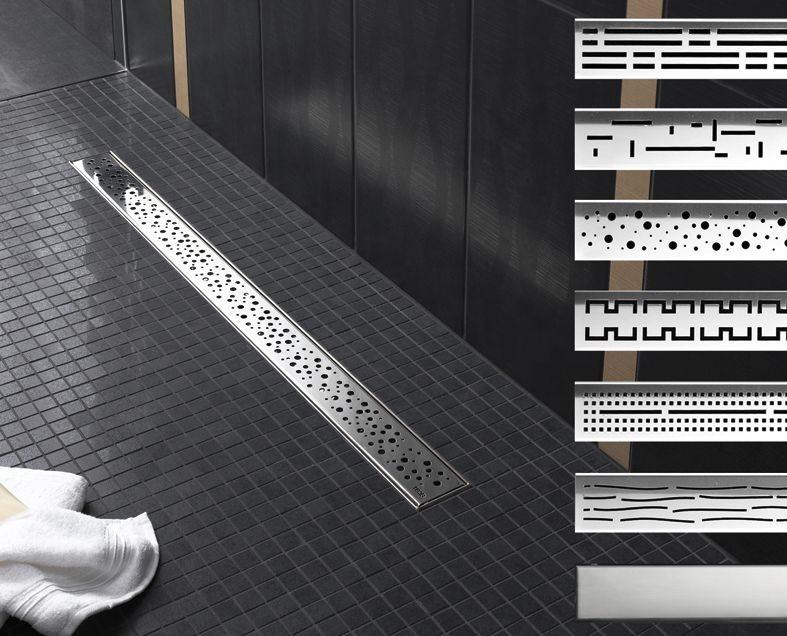

    GRATE PATTERN: 50+ Grate pattern design optional
    COLOR OPTION: Brushed/Mirror/Electro-polished stainless steel/Matte Black/Gold
    Champagne/Titanium/ Gun metal/Rose gold
    ADJUSTABLE GRATE: No(Customized design acceptable)
    WHEELCHAIR ACCESSIBLE: Yes
    APPLICATION: New construction, Renovation
    SUBSTRATE: Concrete / Sand Cement, Lewis sheets, Wooden floors
    FLOOR FINISH: Cast / screed, Glass Mosaic, Natural stone, Thin tiles, Tiles / Mosaic
  • Installation


    Installation

  • Package

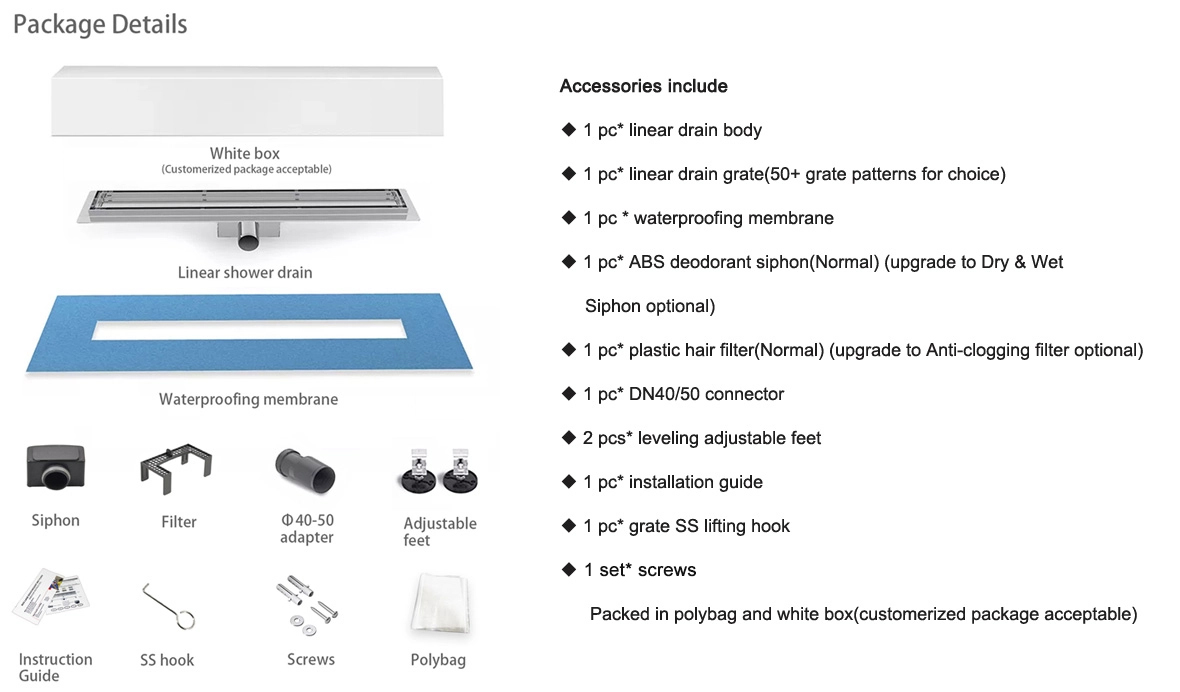

    Package
  • DIY Ideas


    DIY service

    Mondeway® provide DIY service to meet your different requirements, if you want avoid competition for same production, this service will help you to make your own model.
    ◆ Stainless steel 304 siphon to replace
    ◆ Plastic Dry & Wet siphon
    ◆ Stainless steel 304 hair filter to replace
    ◆ Plastic Anti-clogging hair filter
    ◆ Stainless steel 304 anti-clogging hair filter
    ◆ Customized grate pattern design
    ◆ Customized LOGO
    ◆ Customized sticker on box
    ◆ Customized box or color box
    ◆ Customized surface treatment for base and grate
       BASE surface: matte/Electrical polished/ brushed/ colored
       Grate surface: matte/mirror polished/ brushed/ colored
