Amazon hot sale 12 Inches Linear Shower Drain with Rectangular Linear mirror polished 304 Stainless Steel

HIGE END MATERIAL --1.25 KG Item weight tells it is 100% SUS304 Stainless Steel Construction.Chrome surface, durable, prevent corrosion, rust and scratches

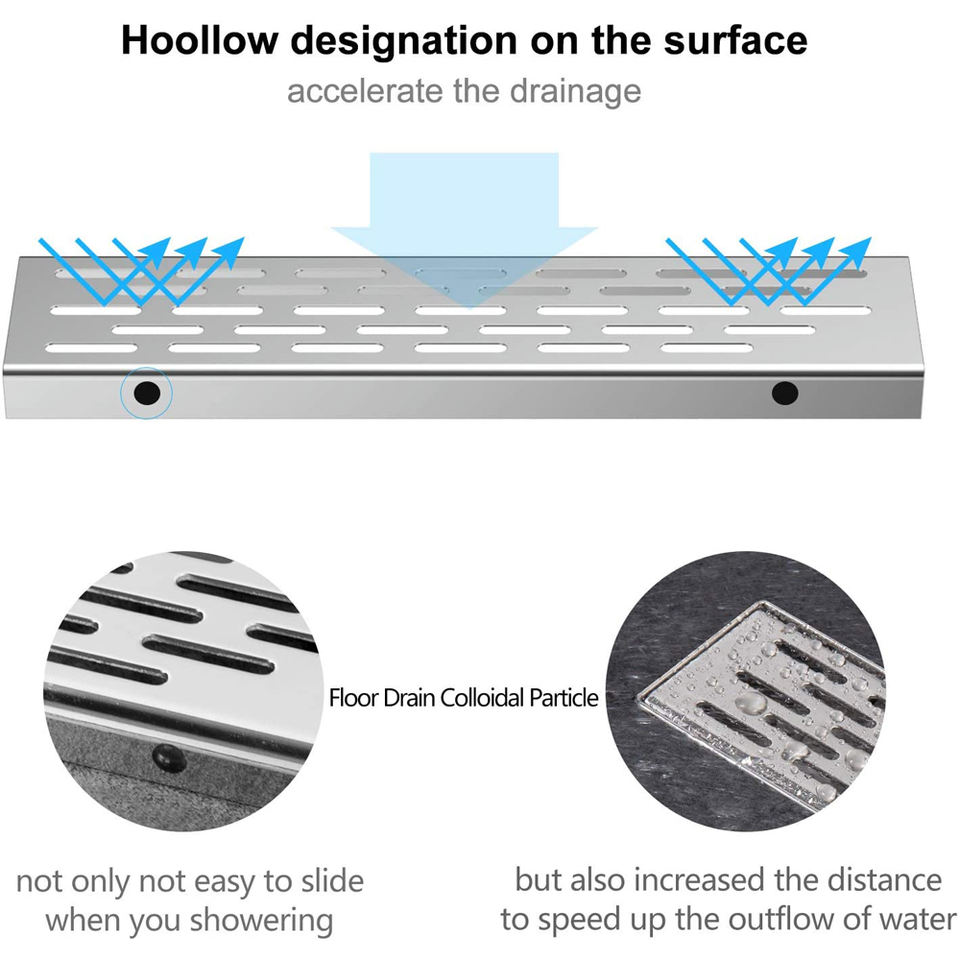

THOUGHTFUL DESIGN- With an enhanced V-shape slope,60L/min High Flow Capability.Universal square hole pattern offer a non-slip surface

MULTIFUNCTION:Can be used in kitchen, bathroom, garage, basement and toilet ;And it preventing unpleasant smell, insects and mice from entering the house

INCLUDED: Liner shower drain,PVC drain flange and rubber gasket.Both feet adjustable for easy installation, removable strainer basket prevents clogging of pipes.

LIFETIME GUARANTEE---Any quality problem(Non-artificial damage) please feel free to contact us, we will reply you within 24 hours


Availability:
Quantity:
Inquire Add to Basket

PDF Export

  • MW-E2-01A

  • Mondeway

Part Number   MW-E2-01A
Item Weight   1.45 pounds
Product Dimensions   13 x 4.8 x 4.4 inches
Is Discontinued By Manufacturer   No
flow rate   60L/Min
Size   12 Inch

Color

    Mirror polished
Style    Shower Floor Drain
Material    SUS304 Stainless Steel
Shape    Square
Installation Method    Floor-Mounted


  • Description


    Description

    Linear Shower Drain
    Problem solver for renovation projects
    With the Mondeway Model A1 Linear Shower Drain you get the easy installation for horizontal shower drain. Manufactured in high quality level, designed by new ideas, complied with standard EN1253, the Model A1 has the lowest possible installation depth, easy install for tiles, adjustable installation height, and a removable, easy-to-clean siphon with a large drainage capacity. These specifications make the Horizontal Model A1 the perfect‘problem solver’for renovation projects.
  • Technical specifications


    Technical specifications

    SHOWER DRAIN MODEL: Linear shower drain Model A1
    Categories: Shower Drains
    Outlet type: Horizontal outlet
    Flange width: 20mm
    Shape: Linear
    OEM&ODM: Acceptable
    Material: Stainless steel 304 ( 316 optional)
    Certificate: CE EN1253
    Market: Europe

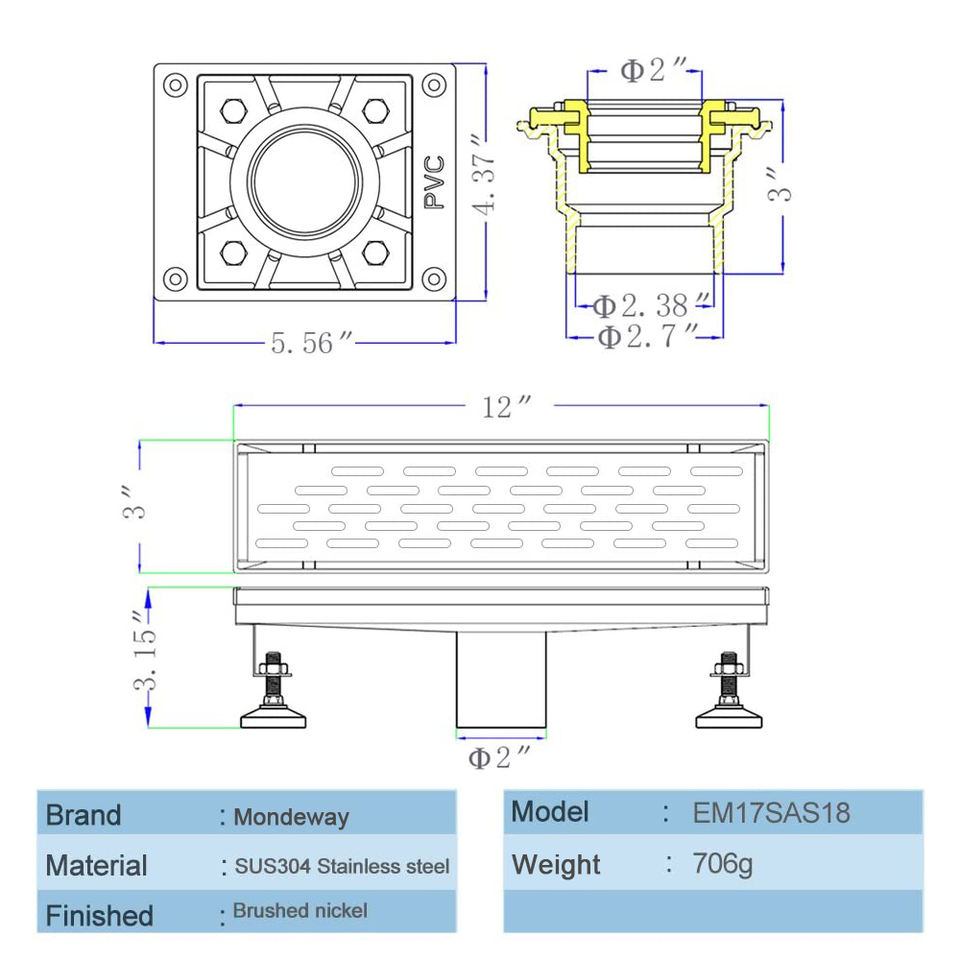

    DIMENSIONS (MM)
    Length Range:
    ◆200mm ◆300mm ◆400mm ◆500mm ◆600mm ◆700mm
    ◆800mm ◆900mm ◆1000mm ◆1100mm ◆1200mm ◆1500mm
    ◆1800mm ◆2000mm ◆2400mm ◆other
    Width: 70mm
    Installation Height: 70-95mm Adjustable
    Min INSTALLATION DEPTH: 70mm
    CONNECTION (⌀) : 40mm or 50mm
    HEIGHT ADJUSTABLE FEET INCLUDED: Yes
    WATER SEAL (Normal): 32mm
    WATER SEAL (Dry & Wet): 28mm
    LOCATION IN SHOWER: Free in the floor
    MAX. DRAINAGE CAPACITY (L/MIN): 35L/min with normal siphon(42L/min upgrade optional with Dry & Wet siphon)
    SEALING MEMBRANE INCLUDED (WPS): Yes
    SIPHON CHARACTERISTICS: Cleanable (Dry & Wet siphon upgrade option)
    Dry & Wet SIPHON CHARACTERISTICS: Cleanable, Higher flow rate, Permanent anti-odor, Prevent insects from entering.
    GRATE: Brushed/Mirror stainless steel / Tile
    GRATE PATTERN: 50+ Grate pattern design optional
    COLOR OPTION: Brushed/Mirror/Electro-polished stainless steel/Matte Black/Gold
    Champagne/Titanium/ Gun metal/Rose gold
    ADJUSTABLE GRATE: No(Customized design acceptable)
    WHEELCHAIR ACCESSIBLE: Yes
    APPLICATION: New construction, Renovation
    SUBSTRATE: Concrete / Sand Cement, Lewis sheets, Wooden floors
    FLOOR FINISH: Cast / screed, Glass Mosaic, Natural stone, Thin tiles, Tiles / Mosaic
  • Installation


    Installation

  • Package
    Package
  • DIY Ideas


    DIY service

    Mondeway® provide DIY service to meet your different requirements, if you want avoid competition for same production, this service will help you to make your own model.
    ◆ Stainless steel 304 siphon to replace
    ◆ Plastic Dry & Wet siphon
    ◆ Stainless steel 304 hair filter to replace
    ◆ Plastic Anti-clogging hair filter
    ◆ Stainless steel 304 anti-clogging hair filter
    ◆ Customized grate pattern design
    ◆ Customized LOGO
    ◆ Customized sticker on box
    ◆ Customized box or color box
    ◆ Customized surface treatment for base and grate
       BASE surface: matte/Electrical polished/ brushed/ colored
       Grate surface: matte/mirror polished/ brushed/ colored
