How to make a new type of nose hair trimmer

Whether it's a girl or a boy, when one or two nose hairs are suddenly quietly exposed to the sun one day, the worst thing is that they won't notice it, but others will definitely see it. This is undoubtedly a strict test for the image. In order to prevent problems before they occur, a nose trimmer is undoubtedly a good must-have beauty tool. The nose hair trimmer is generally designed with a three-dimensional arched cutter head, which will not hurt the nasal cavity, and it is quiet in operation and has the advantage of being portable.

At present, some electric nose hair trimming products on the market have the function of nasal cavity lighting, but the light source of the electric nose hair trimming product is limited when it rotates, and the structural layout of the lighting lamp and transparent window in the body is not perfect, resulting in poor light transmittance and The lighting effect is not good. In addition, the current nose hair trimming products on the market do not have bactericidal function, and allergens such as haze, bacterial dust, car exhaust and germs in the living environment will remain in the nasal cavity and will be inhaled deep into the nasal cavity, endangering human health.

Technical implementation elements:

One object of the present application is to provide a novel nose hair trimmer with sterilization function and lighting function, so that users can sterilize the nasal cavity when trimming nose hair, and use the lighting lamp to cooperate with the transparent window to achieve higher light transmittance and better transparency. good lighting effect.

According to one aspect of the present application, there is provided a novel nose hair trimmer comprising:

The fuselage and the head assembly connected with the fuselage, the fuselage is embedded with at least one lighting assembly, the head assembly includes a fixed knife, a fixed knife holder and a transparent window structure, the fixed knife is installed and fixed on the fixed knife Above the tool rest, a transparent window structure is symmetrically distributed on the fixed tool rest. The lighting assembly of the present application adopts an embedded setting, which effectively utilizes the internal space of the fuselage and has a more beautiful appearance. The light assembly of the present application cooperates with the transparent window structure to achieve higher light transmittance and better lighting effect.

Further, in the above-mentioned novel nose hair trimmer, the surface of the fixed knife is provided with a bactericidal coating, so that the user can sterilize the nasal cavity when trimming the nose hair with the nose hair trimmer of the present application.

Further, in the above-mentioned novel nose hair trimmer, the fixed knife is made of antibacterial material, so that the user can sterilize the nasal cavity when trimming the nose hair with the nose hair trimmer of the present application.

Further, in the above-mentioned novel nose hair trimmer, a first lighting component and a second lighting component are embedded in the body. In the present application, dual light components are embedded in the body, and the structure and appearance are more beautiful, and with the transparent window structure, higher light transmittance and better lighting effect can be achieved.

Further, in the above-mentioned novel nose hair trimmer, the first lighting components and the second lighting components are arranged symmetrically on the body.

Further, in the above-mentioned novel nose hair trimmer, a switch touch key is also provided on the body. In the present application, when the switch touch key is pressed, the circuit is turned on, so that the first lighting component and the second lighting component emit light when the nose hair is trimmed, and the nasal cavity is illuminated through the transparent window structure.

Further, in the above-mentioned novel nose hair trimmer, the fixed knife holder and the transparent window structure are integrally processed by two-color mold injection molding, and the appearance is more beautiful.

Compared with the prior art, at least one lighting component is embedded in the body of the nose hair trimmer of the present application, and transparent window structures are symmetrically distributed on the stationary knife holder. The lighting assembly of the present application adopts an embedded setting, which effectively utilizes the internal space of the fuselage and has a more beautiful appearance. The light assembly of the present application cooperates with the transparent window structure to achieve higher light transmittance and better lighting effect.

Description of drawings

Other features, objects and advantages of the present application will become more apparent upon reading the detailed description of the non-limiting examples made with reference to the following:

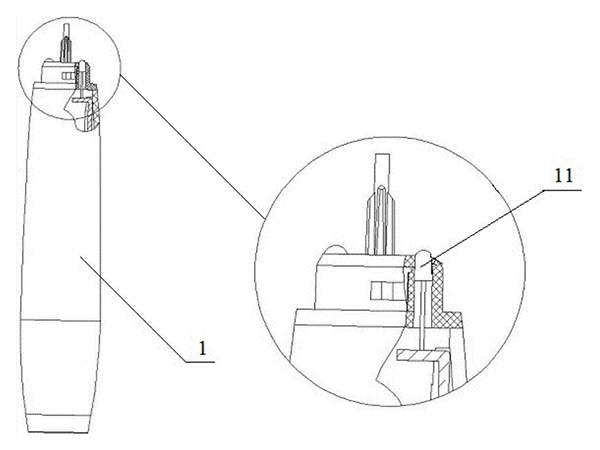

1 body, 2 head components, 11 lighting components, 12 switch touch keys, 21 fixed knife, 22 fixed knife holder, 23 transparent window structure, 111 first lighting component, 112 second lighting component;

detailed description

In order to make the purpose, technical solutions and advantages of the present application clearer, the present application will be further described in detail below with reference to the accompanying drawings. Obviously, the described embodiments are only a part of the embodiments of the present application, rather than all the embodiments. Based on the embodiments in the present application, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present application.

According to one aspect of the present application, a novel nose hair trimmer is provided, which includes: a body 1 and a head assembly 2 connected to the body 1 .

At least one lighting component 11 is embedded in the body 1 of the present application. The lighting assembly of the present application adopts an embedded setting, which effectively utilizes the internal space of the fuselage and has a more beautiful appearance. The lighting assembly is embedded in the interior of the fuselage, and has good sealing performance with the fuselage, thereby improving the service life.

The head assembly 2 of the present application includes a fixed knife 21 , a fixed knife rest 22 and a transparent window structure 23 , the fixed knife 21 is mounted and fixed above the fixed knife rest 22 , and the transparent window structures 23 are symmetrically distributed on the fixed knife rest 22 .

The fixed knife rest 22 of the present application is provided with a transparent window structure 23 , and the transparent window structures 23 are symmetrically distributed on the fixed knife rest 22 . The lighting assembly of the present application cooperates with the transparent window structure to achieve higher light transmittance and better lighting effect

Further, in the above-mentioned novel nose hair trimmer, the fixed knife holder 22 and the transparent window structure 23 are integrated by injection molding of a two-color mold, and the appearance is more beautiful.

Further, in the above-mentioned novel nose hair trimmer, the surface of the fixed knife 21 is provided with a bactericidal coating, and the coating has bactericidal, waterproof and rust-proof functions, so that the user can use the nose hair trimmer of the present application to trim nose hair. Sterilization treatment.

Further, in the above-mentioned novel nose hair trimmer, the fixed blade 21 is made of antibacterial material.

The surface of the fixed knife 21 of the present application is coated with a bactericidal coating or the fixed knife 21 is made of a material with a bactericidal function, so that the head assembly of the nose hair trimmer has a bactericidal function, and the user can sterilize the nasal cavity when trimming the nose hair with the nose hair trimmer of the present application It solves the problem that the existing nose hair trimming products do not have sterilization function, so that allergens such as haze, bacterial dust, car exhaust and germs in the living environment will remain in the nasal cavity and will be inhaled deep into the nasal cavity, endangering human health. .

Further, in the above-mentioned novel nose hair trimmer, the body 1 is embedded with a first lighting assembly 111 and a second lighting assembly 112 .

The nose hair trimmer of the present application has a dual-lamp lighting function, and the first lighting assembly 111 and the second lighting assembly 112 are embedded inside the body, which makes the structure and appearance more beautiful.

Further, in the above-mentioned novel nose hair trimmer, the first lighting components 111 and the second lighting components 112 are symmetrically arranged on the body 1 .

In implementation, the light emitted by the lighting assembly 1 of the present application can achieve higher light transmittance and better lighting effect through the transparent window structure 23 .

Further, in the above-mentioned novel nose hair trimmer, a switch touch key 12 is also provided on the body 1 . In the present application, when the switch touch key 12 is pressed, the circuit is turned on, so that the lighting components (the first lighting component 111 and the second lighting component 112 ) emit light when the nose hair is trimmed, and the nasal cavity is illuminated through the transparent window structure 23 .

To sum up, at least one lighting component is embedded in the body of the nose hair trimmer of the present application, and transparent window structures are symmetrically distributed on the stationary knife holder. The lighting assembly of the present application adopts an embedded setting, which effectively utilizes the internal space of the fuselage and has a more beautiful appearance. The light assembly of the present application cooperates with the transparent window structure to achieve higher light transmittance and better lighting effect. The surface of the fixed knife of the present application is coated with a bactericidal coating or the fixed knife adopts a material with a bactericidal function, so that the user can sterilize the nasal cavity when trimming the nose hair with the nose hair trimmer of the present application. The present application provides a novel nose hair trimmer with sterilization function and lighting function.

Obviously, those skilled in the art can make various changes and modifications to the present application without departing from the spirit and scope of the present application. Thus, if these modifications and variations of the present application fall within the scope of the claims of the present application and their equivalents, the present application is also intended to include these modifications and variations.

It will be apparent to those skilled in the art that the present application is not limited to the details of the above-described exemplary embodiments, but that the present application can be implemented in other specific forms without departing from the spirit or essential characteristics of the present application. Accordingly, the embodiments are to be regarded in all respects as illustrative and not restrictive, and the scope of the application is to be defined by the appended claims rather than the foregoing description, which is therefore intended to fall within the scope of the claims. All changes within the meaning and scope of the equivalents of , are included in this application. Any reference signs in the claims shall not be construed as limiting the involved claim. Furthermore, it is clear that the word "comprising" does not exclude other units or steps and the singular does not exclude the plural. Several units or means recited in the device claims can also be realized by one unit or means by means of software or hardware. The terms first, second, etc. are used to denote names and do not denote any particular order.
