How to make a hot air brush
The utility model relates to the technical field of hairdressing equipment, in particular to a hot air comb.
Background technique:
At present, the rotating hot air combs on the market generally use variable speed motors to drive the hot air combs to rotate. For example, the Chinese utility model patent with the application number of 201220570994.7 discloses a hot air comb hair curler, the hot air comb hair curler includes a hair roller and a deceleration motor, bristles can be installed on the outer wall of the hair curler, and the deceleration motor drives the hair curler to rotate. The above-mentioned hot air comb and curler has the problems of small air volume and high cost caused by the use of a variable speed motor.
Technical implementation elements:
The technical problem to be solved by the utility model is: to provide a hot air comb which utilizes airflow to push the hair comb to rotate.
In order to solve the above-mentioned technical problems, the technical scheme adopted by the present utility model is:
A hot-air comb, comprising a handle part and a hair-comb part, wherein the handle part and the hair-comb part are respectively hollow structures, a first air duct is arranged in the handle part, and a fan is arranged in the first air duct;
A second air duct is arranged in the hair comb, and the first air duct communicates with the second air duct;
The hair combing part includes a rotating part and a bracket provided with a support shaft, the support shaft is fixedly connected with one end of the bracket, and the other end of the bracket is connected with the handle part;
The rotating member includes a comb cylinder and a rotating blade, and the outer side wall of the comb cylinder is provided with a ventilation hole that communicates with the inner cavity of the comb cylinder; the rotating blade is rotatably connected to the support shaft, and the airflow generated by the fan passes through the first cylinder. An air duct enters the second air duct and blows the rotating blades to rotate, and the rotation of the rotating blades drives the comb cylinder to rotate.
A heating tube is also arranged in the first air duct of the handle portion, and the heating tube is used to heat the airflow generated by the fan.
The outer side wall of the comb cylinder is provided with a plurality of comb teeth along the circumferential direction.
Further, the comb cylinder is a cylindrical structure and a cover is provided on the periphery of the rotating blade, and the comb cylinder is fixedly connected with the rotating blade.
Further, a heating pipe is also arranged in the first air duct of the handle portion, and the heating pipe is used to heat the airflow generated by the fan.
Further, the outer side wall of the comb cylinder is provided with a plurality of comb teeth along the circumferential direction.
Further, the comb barrel is made of thermally conductive material, and the comb barrel can perm the hair wound on it after being heated by the hot air flow.
Further, the support shaft is provided with a first bearing and a second bearing at intervals, and the rotating blade is connected to the support shaft through the first bearing.
Further, the comb cylinder is connected to the support shaft through a second bearing.
Further, the ventilation holes are arranged to extend along the axial direction of the hair combing member.
Further, the number of the ventilation holes is at least two, and the at least two ventilation holes are evenly arranged along the circumferential direction of the hairbrush member.
Further, the bracket is detachably connected to the other end of the handle portion.
The beneficial effect of the utility model is that the air flow generated by the fan enters the second air duct, and when passing through the rotating blade, the rotating blade is pushed to rotate, thereby driving the hair comb to rotate, and the comb teeth on the comb cylinder can be wound and combed with the rotation of the comb cylinder. At the same time, the hot air from the comb cylinder can quickly dry the hair being combed, and perm the hair wrapped on it; this scheme has a large amount of hot air comb, and the comb parts of the hot air comb do not need additional motor drive.
Description of drawings

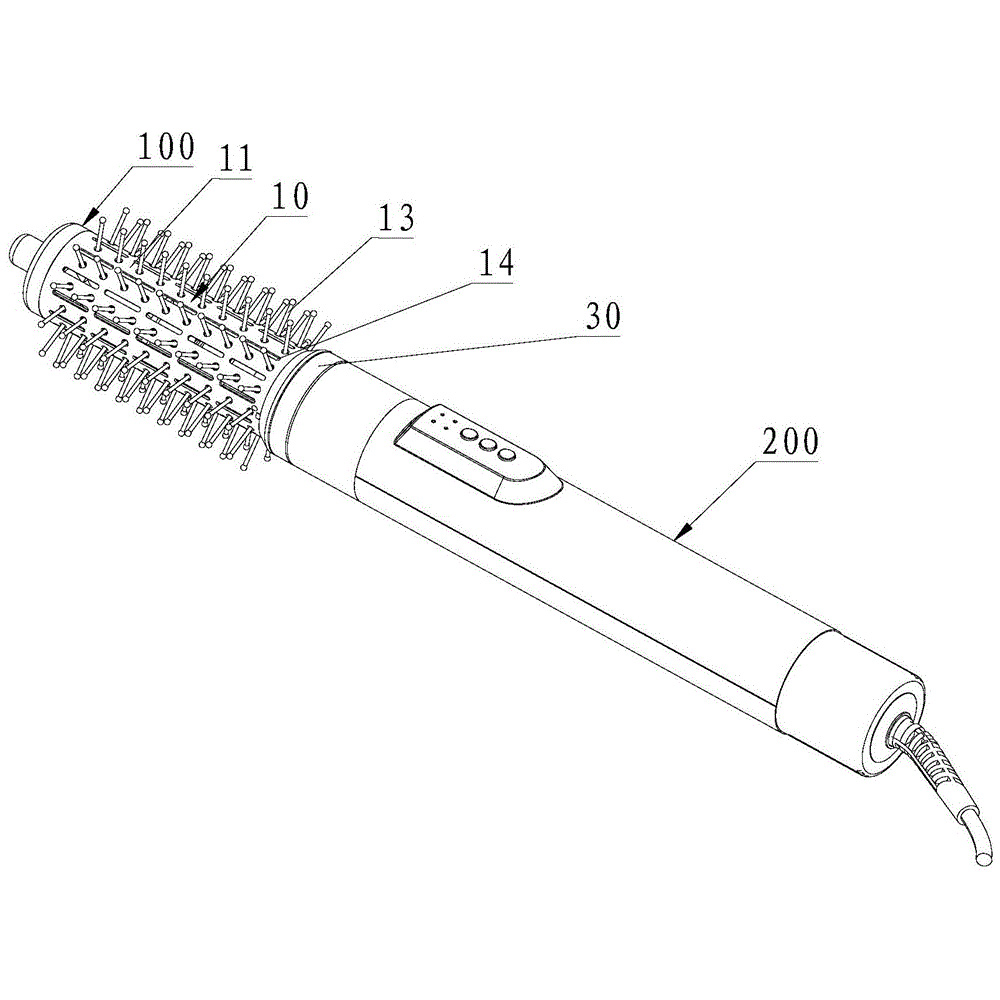

Fig. 1 is the structural representation of the hot air comb of the utility model embodiment;
2 is a schematic longitudinal cross-sectional view of the rotating member of the hot air comb and the fixed seat in the assembled state of the embodiment of the present utility model;
3 is a side view of the rotating part of the hot air comb and the fixed seat in the assembled state of the embodiment of the present utility model;
4 is a schematic diagram of an exploded structure of a rotating member and a fixed seat of a hot air comb according to an embodiment of the present invention;
Label description:
100. Comb hair pieces;
10. Rotating part; 11. Comb cylinder; 12. Rotating blade; 13. Comb teeth; 14. Ventilation hole; 15. Support shaft; 16. First bearing; 17. Second bearing;
20. The second air duct;
30. Bracket;
200. The handle part.
detailed description
In order to describe in detail the technical content, achieved objects and effects of the present invention, the following descriptions are given with reference to the embodiments and the accompanying drawings.
The most critical concept of the present invention is that the airflow introduced into the combing member drives the combing member to rotate, thereby winding and combing the hair, and at the same time, the airflow is sprayed from the vent to dry the hair.
1-4, a hot air comb includes a handle part 200 and a hair-comb part 100, the handle part 200 and the hair-comb part 100 are respectively hollow structures, and the handle part 200 is provided with a first air duct, a fan is arranged in the first air duct;
The hair combing member 100 is provided with a second air duct 20, and the first air duct communicates with the second air duct 20;
The hair combing member 100 includes a rotating member 10 and a bracket 30 provided with a support shaft 15, the support shaft 15 is fixedly connected to one end of the bracket 30, and the other end of the bracket 30 is connected to the handle portion 200;
the bracket 30 is fixed on one end of the handle part 200;
The rotating member 10 includes a comb cylinder 11 and a rotating blade 12. The outer side wall of the comb cylinder 11 is provided with a ventilation hole 14 that communicates with the inner cavity of the comb cylinder 11; the rotating blade 12 is rotatably connected to the bracket 30, and the The air flow generated by the fan passes through the first air duct and enters the second air duct 20 and blows the rotating blades 12 to rotate, and the rotation of the rotating blades 12 drives the comb cylinder 11 to rotate.
As can be seen from the above description, the beneficial effect of the present utility model is: the airflow generated by the fan enters the second air duct, and when passing through the rotating blade, the rotating blade is pushed to rotate, thereby driving the hair comb to rotate, and the comb teeth on the comb cylinder rotate with the rotation of the comb cylinder. The hair can be combed, and at the same time, the hot air from the comb can quickly dry the hair being combed, and perm the hair wrapped around it; the hot air comb has a large air volume, and the hair comb of the hot air comb does not require additional motor drive .
Further, the comb cylinder 11 has a cylindrical structure and is covered on the periphery of the rotating blade 12 , and the comb cylinder 11 is fixedly connected with the rotating blade 12 .
Further, a heating pipe is also arranged in the first air duct of the handle portion 200, and the heating pipe is used to heat the airflow generated by the fan.
Further, the outer side wall of the comb cylinder 11 is provided with a plurality of comb teeth 13 along the circumferential direction.
Further, the comb barrel 11 is made of a thermally conductive material, and after the comb barrel 11 is heated by the hot air flow, the hair wrapped thereon can be permed.
Further, the support shaft 15 is provided with a first bearing 16 and a second bearing 17 at intervals, and the rotating blade 12 is connected to the support shaft 15 through the first bearing 16 .
Further, the comb cylinder 11 is connected to the support shaft 15 through a second bearing 17 .
Further, the ventilation holes 14 are arranged to extend along the axial direction of the hair brushing member 100 .
It can be seen from the above description that the ventilation holes 14 are elongated on the hair combing member 100, and one ventilation hole 14 may correspond to the hair in one area.
Further, the number of the ventilation holes 14 is at least two, and at least two of the ventilation holes 14 are evenly arranged along the circumferential direction of the hairbrush member 100 .
Further, the bracket 30 is detachably connected to the other end of the handle portion 200 .
Example 1
1-2, the hot air comb provided in this embodiment includes a handle portion 200 and a hair combing member 100, the handle portion 200 and the hair brushing member 100 are respectively hollow structures, and the handle portion 200 is provided with a first air comb The first air duct is provided with a fan;
The hair combing member 100 is provided with a second air duct 20, and the first air duct communicates with the second air duct 20;
The hair combing member 100 includes a rotating member 10 and a bracket 30 provided with a support shaft 15, the support shaft 15 is fixedly connected to one end of the bracket 30, and the other end of the bracket 30 is connected to the handle portion 200;
The rotating member 10 includes a comb cylinder 11 and a rotating blade 12. The outer side wall of the comb cylinder 11 is provided with a ventilation hole 14 that communicates with the inner cavity of the comb cylinder 11; the rotating blade 12 is rotatably connected to the bracket 30, and the The air flow generated by the fan passes through the first air duct and enters the second air duct 20 and blows the rotating blades 12 to rotate, and the rotation of the rotating blades 12 drives the comb cylinder 11 to rotate.
Embodiment 2
1-4, the hot-air comb provided in this embodiment includes a handle portion 200 and a hair-comb component 100, and the handle portion 200 and the hair-comb component 100 are respectively hollow structures;
The handle portion 200 is provided with a first air duct, and the first air duct is provided with a fan and a heating pipe;
The hair combing member 100 includes a rotating member 10 and a bracket 30 provided with a support shaft 15. The support shaft 15 is fixedly connected to one end of the bracket 30, and the other end of the bracket 30 is detachably connected to the handle portion 200;
The rotating member 10 includes a comb cylinder 11 and a rotating blade 12. The outer side wall of the comb cylinder 11 is respectively provided with a plurality of comb teeth 13 and a plurality of ventilation holes 14 communicating with the inner cavity of the comb cylinder 11. The holes 14 are extended along the axial direction of the hair brushing member 100 , and a plurality of the ventilation holes 14 are evenly arranged along the circumferential direction of the hair brushing member 100 .
The comb cylinder 11 is a cylindrical structure and is covered on the periphery of the rotating blade 12, the comb cylinder 11 is fixedly connected with the rotating blade 12, and the comb cylinder 11 is made of thermally conductive material;
The support shaft 15 is provided with a first bearing 16 and a second bearing 17 at intervals, the rotating blade 12 is connected to the support shaft 15 through the first bearing 16 , and the comb cylinder 11 is connected to the support shaft 15 through the second bearing 17 . on the support shaft 15.
The airflow generated by the fan passes through the first air duct and is heated by the heating pipe, then enters the second air duct 20 and blows the rotating blade 12 to rotate. The rotation of the rotating blade 12 drives the comb cylinder 11 to rotate. After the drum 11 is heated by the hot air, it can perm the hair wound on it, and part of the hot air is ejected from the ventilation holes 14 in the forward flow, which can also play the role of drying the hair.
To sum up, the utility model provides a hot air comb that utilizes hot air to drive the hot air comb to rotate. The hot-air comb has low noise when rotating and blowing out, and can automatically wind and comb hair while drying the hair. The hot-air comb in this scheme has a large air volume, and the combing parts of the hot-air comb do not require additional motor drive. The above are only the embodiments of the present utility model, and are not intended to limit the scope of the present utility model's patent. Any equivalent transformation made by using the contents of the present utility model description and accompanying drawings, or directly or indirectly applied in the relevant technical fields, are the same as The principles are included in the scope of patent protection of the present invention.
