The utility model relates to the technical field of life care products, in particular to a shaver.
Background technique:
The mesh cover of the existing shaver is only provided with a number of inlet pores on the top surface, and the interior of the shaver is provided with a razor that can swing back and forth. . However, since the hair can only enter the shaver from the top surface of the mesh cover, for some longer hairs, it is difficult for the hair to enter the shaver, so the shaving efficiency is low.
Technical implementation elements:
In view of this, the utility model provides a shaver that can shave both the top surface of the net cover and the side of the net cover, the hair can easily enter the shaver, and the shaving efficiency is high, so as to solve the problem. above problem.
A shaver comprises a casing, a metal mesh cover, a mobile unit, a top razor unit and at least one side razor unit; an opening is provided in the middle of the top of the casing, and the metal mesh cover is arranged at the opening; the mobile unit, the top razor unit and the side razor unit are all arranged in the housing; the metal mesh cover has a top surface and at least one side surface located on one side of the top surface, the top surface of the metal mesh cover close to the side surface is provided with a number of first slits at intervals, the metal mesh cover The top of the side is provided with a second slit communicating with the first slit; the bottom of the mobile unit is protruded with a connecting head, the top surface of the mobile unit is connected with the top razor unit, and the side razor unit is connected with the side of the mobile unit.
Further, at least one side surface of the moving unit is protruded with several connecting posts and several clamping posts, the side shaving unit includes a second connecting part and a second shaving part, and the second connecting part is provided with a communication through hole corresponding to the connecting post. The corresponding clamping post is provided with a long hole, the connecting post passes through the communication through hole, the clamping post passes through the long hole, and a plurality of razor teeth protrude from the top surface of the second razor part.
Further, a plurality of first connecting bumps and a plurality of second connecting bumps are protruded from the top surface of the moving unit, and the top shaving unit includes a first connecting portion and a first shaving portion vertically connected to the top of the first connecting portion, The first connecting portion is provided with a first connecting groove corresponding to the first connecting protrusion, and a second connecting groove corresponding to the second connecting protrusion, the first connecting protrusion passing through the first connecting groove, and the second connecting protrusion passing through In the second connecting groove, a plurality of razor bars are arranged on the first razor part at intervals.
Further, the end of the clamping column is provided with a clamping hook, and the clamping hook is clamped with the second connecting portion after passing through the elongated hole.
Further, a first elastic member is arranged between the side razor unit and the moving unit.
Further, a second elastic member is arranged between the side razor unit and the housing.
Further, an abutting unit is disposed below the moving unit, and third elastic members are disposed on both sides of the connecting head between the moving unit and the abutting unit.
Compared with the prior art, the shaver of the present invention includes a casing, a metal mesh cover, a moving unit, a top razor unit and at least one side razor unit; an opening is provided in the middle of the top of the casing, and the metal mesh cover is arranged in the opening. The mobile unit, the top razor unit and the side razor unit are all arranged in the housing; the metal mesh cover has a top surface and at least one side surface located on one side of the top surface, and the top surface of the metal mesh cover close to the side surface is provided with Several first slits, the top of the side of the metal mesh cover is provided with a second slit that communicates with the first slit; the bottom of the mobile unit is protruded with a connecting head, the top surface of the mobile unit is connected with the top razor unit, and the side razor unit is connected with the mobile unit. Side connection of the unit. In this way, the hair can be shaved not only on the top surface of the metal mesh cover, but also on the side surface of the metal mesh cover, and the hair can easily enter the shaver, and the shaving efficiency is high.
detailed description
The specific embodiments of the present invention will be further described in detail below based on the accompanying drawings. It should be understood that the description of the embodiments of the present invention here is not intended to limit the protection scope of the present invention.
The shaver provided by the utility model comprises a main body and a shaving head connected with the main body. The main body is provided with a driving device and a power source, and the driving device is used for driving the shaving head to work. The main body, the driving device, the power supply and other parts in the main body are all known technologies in the art, and will not be repeated here, only the shaving head with the utility model will be described in detail.

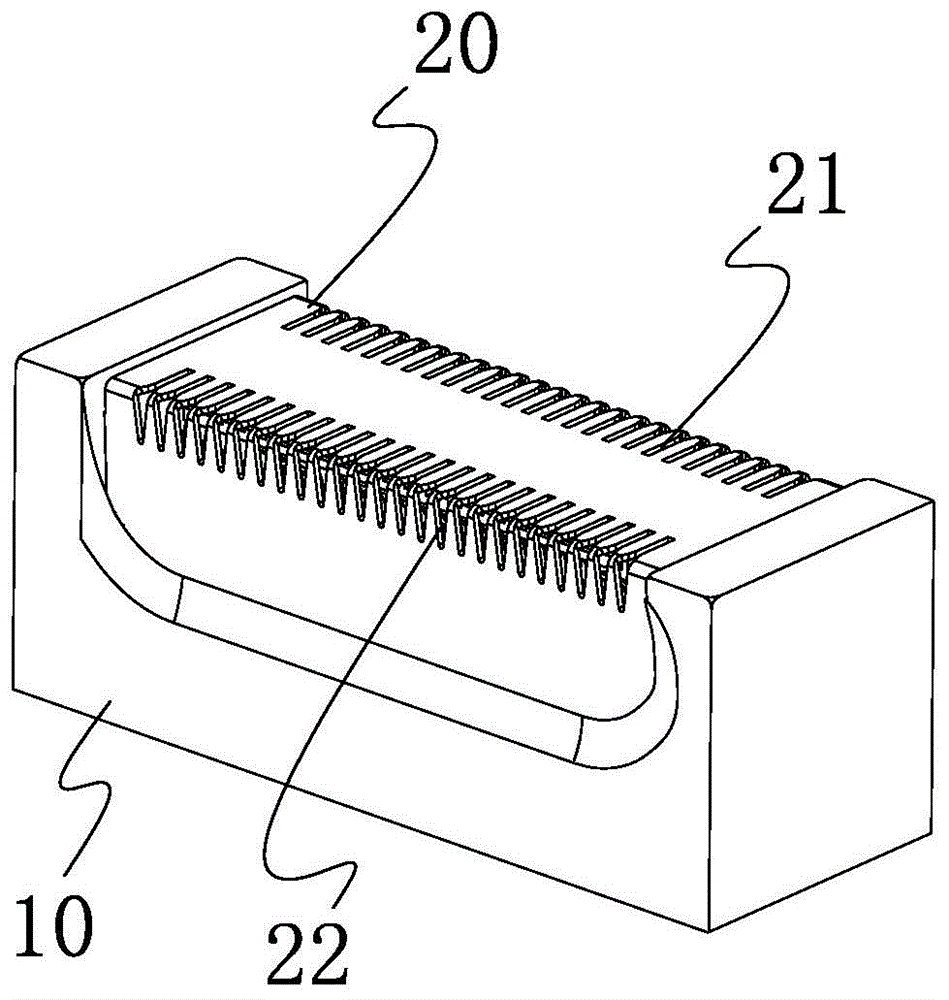

The shaving head has a housing 10 , a metal mesh cover 20 , a mobile unit 30 , a top razor unit 40 and two side razor units 50 .
An opening is formed in the middle of the top of the casing 10 , and the metal mesh cover 20 is disposed at the opening. The moving unit 30 , the top razor unit 40 and the side razor unit 50 are all disposed in the housing 10 .
The metal mesh cover 20 has a top surface and two side surfaces respectively located on both sides of the top surface. An angle connection or an arc connection is formed between the side surface and the top surface.
The two sides of the top surface of the metal mesh cover 20 are respectively provided with a plurality of first slits 21 at intervals, and the top of the side surface of the metal mesh cover 20 is provided with second slits 22 communicating with the first slits 21 . Hair can enter the shaver from the first slit 21 or the second slit 22 .
The top surface of the moving unit 30 is connected with the top razor unit 40 , and the two side surfaces of the moving unit 30 are connected with the two side razor units 50 respectively.
Please refer to FIG. 4 and FIG. 5 , a connecting head 31 is protruded from the bottom of the mobile unit 30 , and a connecting groove is formed on the connecting head 31 for connecting with the output shaft of the driving device of the main body.
A plurality of first connection bumps 32 and a plurality of second connection bumps 33 are protruded from the top surface of the mobile unit 30 , and a plurality of connection posts 34 and a plurality of snap posts 35 are protruded from both sides of the mobile unit 30 .
The top razor unit 40 includes a first connecting portion 41 and a first razor portion 42 vertically connected to the top of the first connecting portion 41. The first connecting portion 41 defines a first connecting groove 44 corresponding to the first connecting bump 32, corresponding to the first connecting portion 41. The two connecting protrusions 33 are provided with a second connecting groove 45 , the first connecting protrusion 32 passes through the first connecting groove 44 , and the second connecting protrusion 33 passes through the second connecting groove 45 . Thereby, the top razor unit 40 is fixed to the top surface of the mobile unit 30 . A plurality of razor bars 43 are arranged on the first razor portion 42 at intervals.
The side razor unit 50 includes a second connection part 51 and a second razor part 52. The second connection part 51 is provided with a communication through hole 54 corresponding to the connection post 34, and a long hole 55 is formed corresponding to the clamping post 35. Through the communication through holes 54 , the clamping posts 35 pass through the elongated holes 55 . The end of the clamping post 35 is provided with a hook, and the hook passes through the elongated hole 55 and is then clamped with the second connecting portion 51 . This allows the side razor unit 50 to be mounted on the side of the mobile unit 30 . A plurality of razor teeth 53 are protruded from the top surface of the second razor part 52 .
In order to prevent the side razor unit 50 from interfering with the mobile unit 30 and the top razor unit 40, a first elastic member 72 is provided between the side razor unit 50 and the mobile unit 30, so as to prevent the side razor unit 50 from interfering with the mobile unit 30 and the mobile unit 30. While the top razor unit 40 causes interference, the balance of both ends of the side razor unit 50 can be maintained, so as to avoid the side razor unit 50 from tilting.
At the same time, a second elastic member 71 is disposed between the side razor unit 50 and the housing 10. In this embodiment, the second elastic member 71 is sleeved on the part of the connecting post 34 protruding from the communication through hole 54, so that the side surface can be avoided. Interference between the razor unit 50 and the housing 10 .
In order to maintain the balance of both ends of the moving unit 30 , an abutting unit 62 is provided below the moving unit 30 , and third elastic members 61 are provided on both sides of the connector 31 between the moving unit 30 and the abutting unit 62 .
The first elastic member 72 , the second elastic member 71 , and the third elastic member 61 can all be elastic members such as a spring, a compression spring, or the like.
During operation, the driving device in the main body drives the moving unit 30 to move back and forth in the longitudinal direction through the connecting head 31, so that the top razor unit 40 and the side razor unit 50 move back and forth relative to the metal mesh cover 20 and extend into the first slit 21 or the first slit 21 or the first slit 21. The hair in the two slits 22 is cut by the top razor unit 40 , the side razor unit 50 and the metal mesh cover 20 .
Compared with the prior art, the shaver of the present invention includes a casing 10, a metal mesh cover 20, a moving unit 30, a top razor unit 40 and two side razor units 50; the top of the casing 10 is provided with an opening in the middle, The metal mesh cover 20 is arranged at the opening; the mobile unit 30, the top razor unit 40 and the side razor unit 50 are all arranged in the housing 10; the metal mesh cover 20 has a top surface and two side surfaces respectively located on both sides of the top surface, The two sides of the top surface of the metal mesh cover 20 are provided with a plurality of first slits 21 at intervals, and the top of the side surface of the metal mesh cover 20 is provided with a second slit 22 communicating with the first slit 21; the bottom of the mobile unit 30 protrudes with a In the connection head 31 , the top surface of the mobile unit 30 is connected with the top razor unit 40 , and the two side surfaces of the mobile unit 30 are respectively connected with the two side razor units 50 . In this way, the hair can be shaved not only on the top surface of the metal mesh cover, but also on the side surface of the metal mesh cover, and the hair can easily enter the shaver, and the shaving efficiency is high.
The above are only preferred embodiments of the present invention, and are not intended to limit the protection scope of the present invention. Any modification, equivalent replacement or improvement within the spirit of the present invention, etc., are all included within the scope of the claims of the present invention. .
